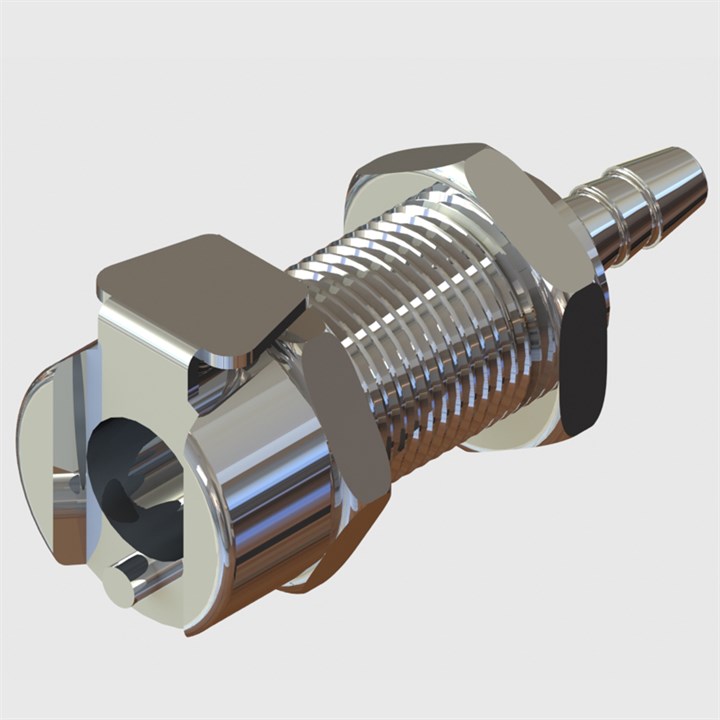

Chrome Plated Brass Panel Mount Socket Coupling, 3.2mm (1/8") ID Tube, Non-Valved, 1/8" Flow - Q2 Series

Chrome Plated Brass Panel Mount Socket Coupling, 3.2mm (1/8") ID Tube, Non-Valved, 1/8" Flow - Q2 Series

E-Q-160600

Chrome Plated Brass Panel Mount Socket Coupling, 3.2mm (1/8") ID Tube, Non-Valved, 1/8" Flow - Q2 Series

In Stock
Chrome Plated Brass Panel Mount Socket Coupling, 3.2mm (1/8") ID Tube, Non-Valved, 1/8" Flow - Q2 Series
£20.53+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£20.53

10 - 99

£19.51

100 - 499

£18.48

500 - 999

£17.45

1000 - 2499

£16.43

2500

£15.40

Eox Shop reserve the right to amend pricing in line with currency fluctuations.
Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-Q-160600

Chrome Plated Brass Panel Mount Socket Coupling, 3.2mm (1/8") ID Tube, Non-Valved, 1/8" Flow - Q2 Series

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Chrome Plated Brass Panel Mount Socket Coupling, 3.2mm (1/8") ID Tube, Non-Valved, 1/8" Flow - Q2 Series

Extended Description 1/8" flow size socket coupling in food grade chrome plated brass, which is more durable and can withstand higher pressure than its plastic equivalent. With an audible thumb-latch connection to mating plug

Ambient Temperature -40°C to 82°C (-40°F to 180°F)

Mounting Style Panel Mount

Connection 1 To suit 3.2 mm (1/8") ID Tube

Connection 2 To mating Q2 Plug Connector

Recommended Filtration To suit application and media used

Media Temperature -40°C to 82°C (-40°F to 180°F)

Non-Wetted Materials Chrome Plated Brass, Stainless Steel

Wetted Materials Chrome Plated Brass

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 17.3 bar (250 psi)

Operating Pressure 17.3 bar (250 psi)

Min Inlet Pressure Vacuum

Item Weight 0.0310Kg (31g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data Connects with other Q2 Couplings. This product is guaranteed to interconnect with all pre-existing industry standard interchangeable thumb-latch quick release couplings of the same size and style, or if not will be replaced or refunded. Nut is included. Suitable for bi-directional flow. Custom designs available or for further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information
