Black Acetal (POM) 10 Way Coupling Set, Buna-N, 3.0mm (0.12") ID Tube, Non-Valved, 1/16" Flow - Q10 Series

Black Acetal (POM) 10 Way Coupling Set, Buna-N, 3.0mm (0.12") ID Tube, Non-Valved, 1/16" Flow - Q10 Series

E-Q-160588

Black Acetal (POM) 10 Way Coupling Set, Buna-N, 3.0mm (0.12") ID Tube, Non-Valved, 1/16" Flow - Q10 Series

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Black Acetal (POM) 10 Way Coupling Set, Buna-N, 3.0mm (0.12") ID Tube, Non-Valved, 1/16" Flow - Q10 Series
£30.80+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£30.80

10 - 99

£29.26

100 - 499

£27.72

500 - 999

£26.18

1000 - 2499

£24.64

2500

£23.10

Eox Shop reserve the right to amend pricing in line with currency fluctuations.
Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-Q-160588

Black Acetal (POM) 10 Way Coupling Set, Buna-N, 3.0mm (0.12") ID Tube, Non-Valved, 1/16" Flow - Q10 Series

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

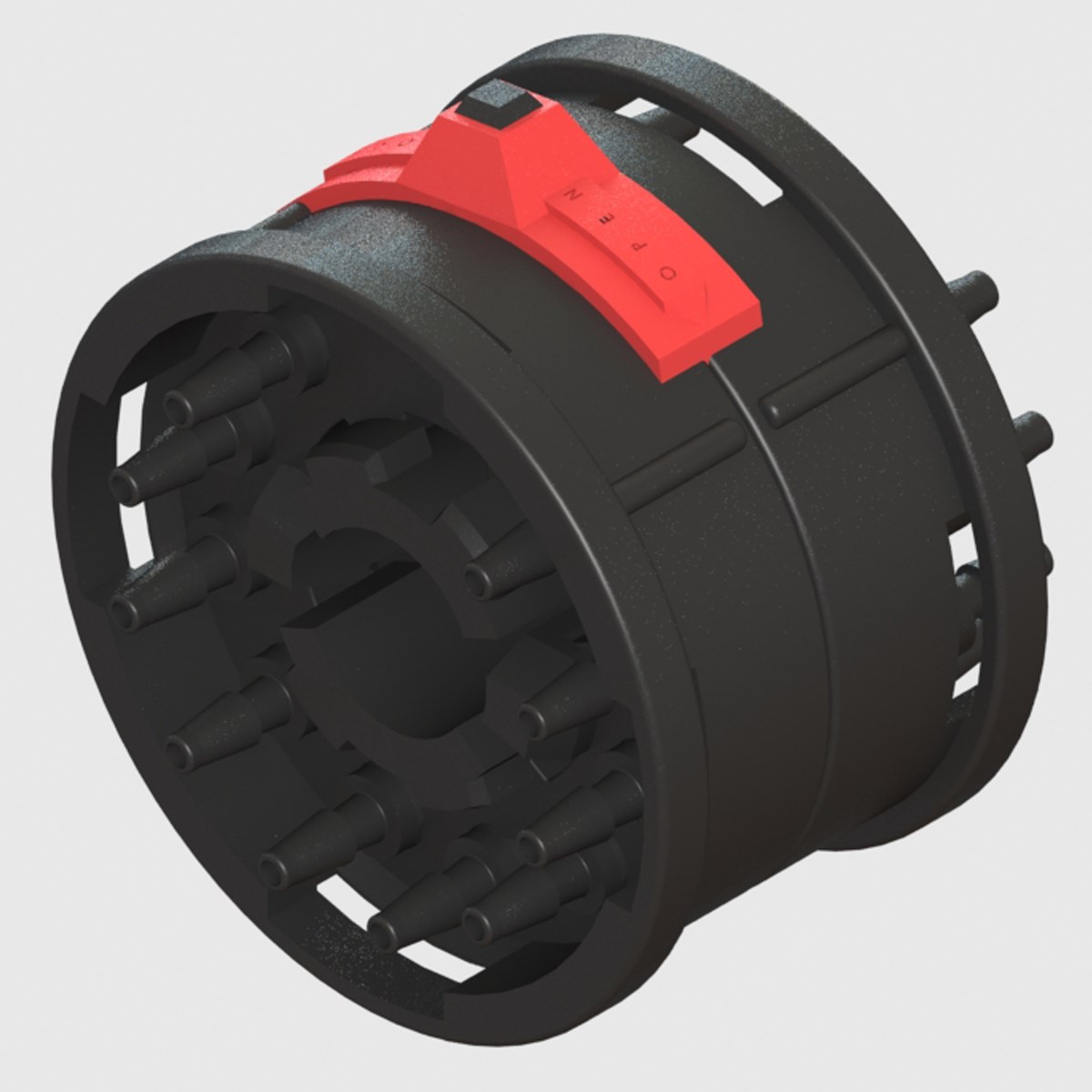

Description Black Acetal (POM) 10 Way Coupling Set, Buna-N, 3.0mm (0.12") ID Tube, Non-Valved, 1/16" Flow - Q10 Series

Extended Description 1/16" Flow size coupling set in durable Acetal (POM) plastic. Ideal for bespoke applications where you may wish to design your own mating connector

Ambient Temperature -40°C to 82°C (-40°F to 180°F)

Mounting Style In-line

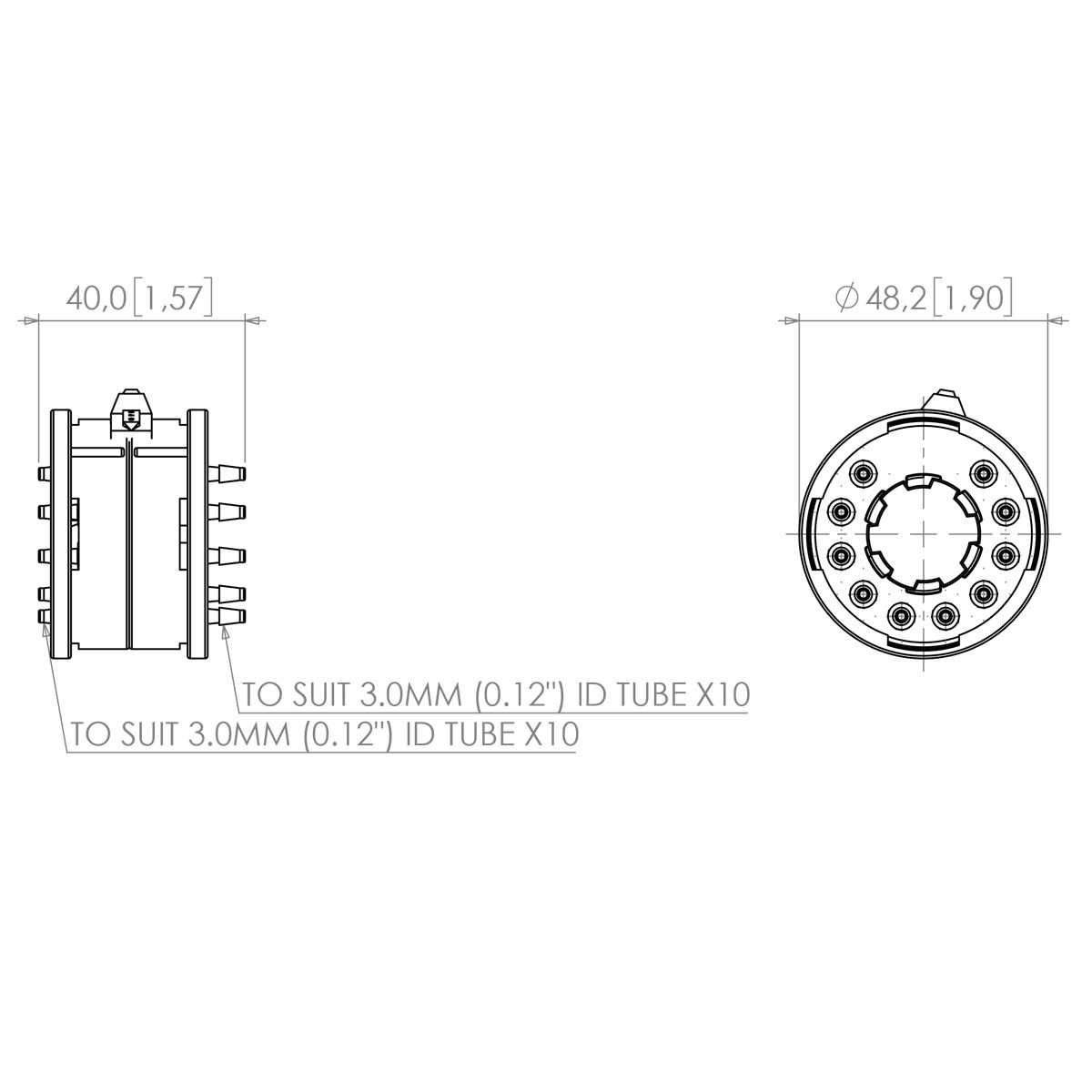

Connection 1 To suit 3 mm (0.12") ID Tube x10

Connection 2 To suit 3 mm (0.12") ID Tube x10

Recommended Filtration To suit application and media used

Media Temperature -40°C to 82°C (-40°F to 180°F)

Non-Wetted Materials Acetal (POM) Copolymer

Wetted Materials Acetal (POM) Copolymer, Buna-N

Cleanroom Manufactured Clean Room, Non-Certified

Max. Inlet Pressure 6.9 bar (100 psi)

Operating Pressure 6.9 bar (100 psi)

Min Inlet Pressure Vacuum

Item Weight 0.036 (1.27oz)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data This product is the ideal replacement for Luer fittings and are smallest connectors to date, these new couplings have a new and improved “Easy Grip Barrel” which helps provide a more secure grip and reliable connection. Suitable for bi-directional flow. Alternative seal materials available. Custom designs available or for further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information
