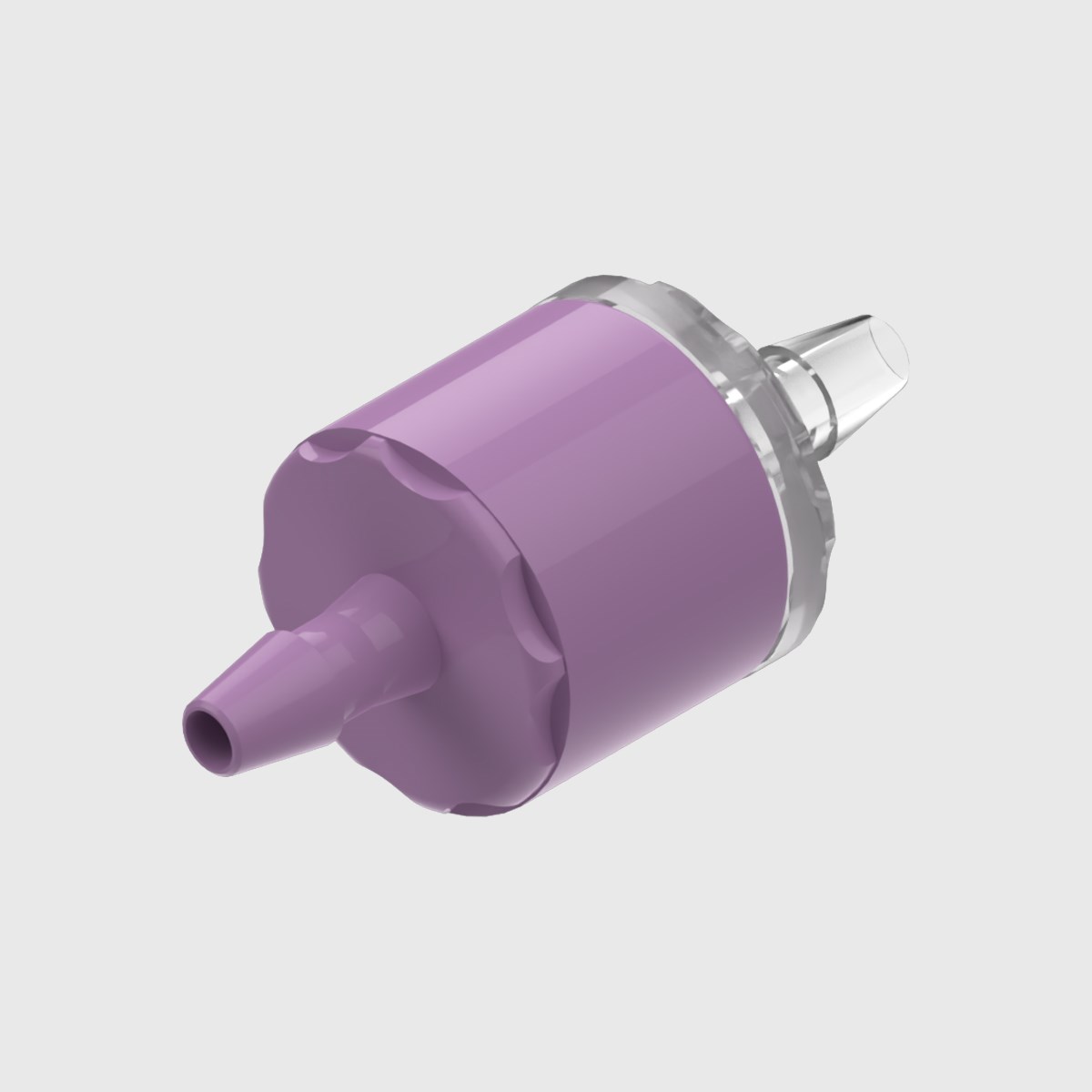

ABS Bodied Check Valve, Silicone Seal, 3/32" (2.4mm) ID Tube, Cracking Pressure ≤ 0.1 psi

ABS Bodied Check Valve, Silicone Seal, 3/32" (2.4mm) ID Tube, Cracking Pressure ≤ 0.1 psi

E-C-3B3B-ABS-S01

ABS Bodied Check Valve, Silicone Seal, 3/32" (2.4mm) ID Tube, Cracking Pressure ≤ 0.1 psi

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

ABS Bodied Check Valve, Silicone Seal, 3/32" (2.4mm) ID Tube, Cracking Pressure ≤ 0.1 psi
£3.03+ VAT
Price per piece
Sold in multiples of 10
Add To Wishlist
Quantity
Price

1 - 250

£3.03

251 - 500

£2.88

501

£2.73

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-C-3B3B-ABS-S01

ABS Bodied Check Valve, Silicone Seal, 3/32" (2.4mm) ID Tube, Cracking Pressure ≤ 0.1 psi

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description ABS Bodied Check Valve, Silicone Seal, 3/32" (2.4mm) ID Tube, Cracking Pressure ≤ 0.1 psi

Extended Description An ABS bodied check valve complete with a Polystyrene cartridge and Silicone diaphragm. Barbed ports inlet and outlet to suit 3/32" (2.4mm) ID tube and has a cracking pressure of equal or lower than 0.1 psi

Mounting Style In-Line

Connection 1 To suit 3/32" (2.4mm) ID Tube

Connection 2 To suit 3/32" (2.4mm) ID Tube

Non-Wetted Materials ABS

Wetted Materials ABS, Polystyrene, Silicone

Cleanroom Manufactured Class 8 (100,000) cleanroom

Max. Inlet Pressure 4 bar (58 psi)

Cracking Pressure ≤ 0.1 psi

Item Weight 0.0020Kg (2g)

ROHS Compliant Yes

Regulatory Information Meets Requirements for USP Class VI, FDA 21 CFR 181.32. California Prop. 65

REACH Compliant Yes

Other Technical Data Conflict mineral compliant. DEHP free. Animal derivative free. Human derivative free. BPA free. Phthalate free. Latex free. Compatible with EtO (Ethylene Oxide) sterilisation and gamma sterilisation, but is not compatible with autoclave sterilisation. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

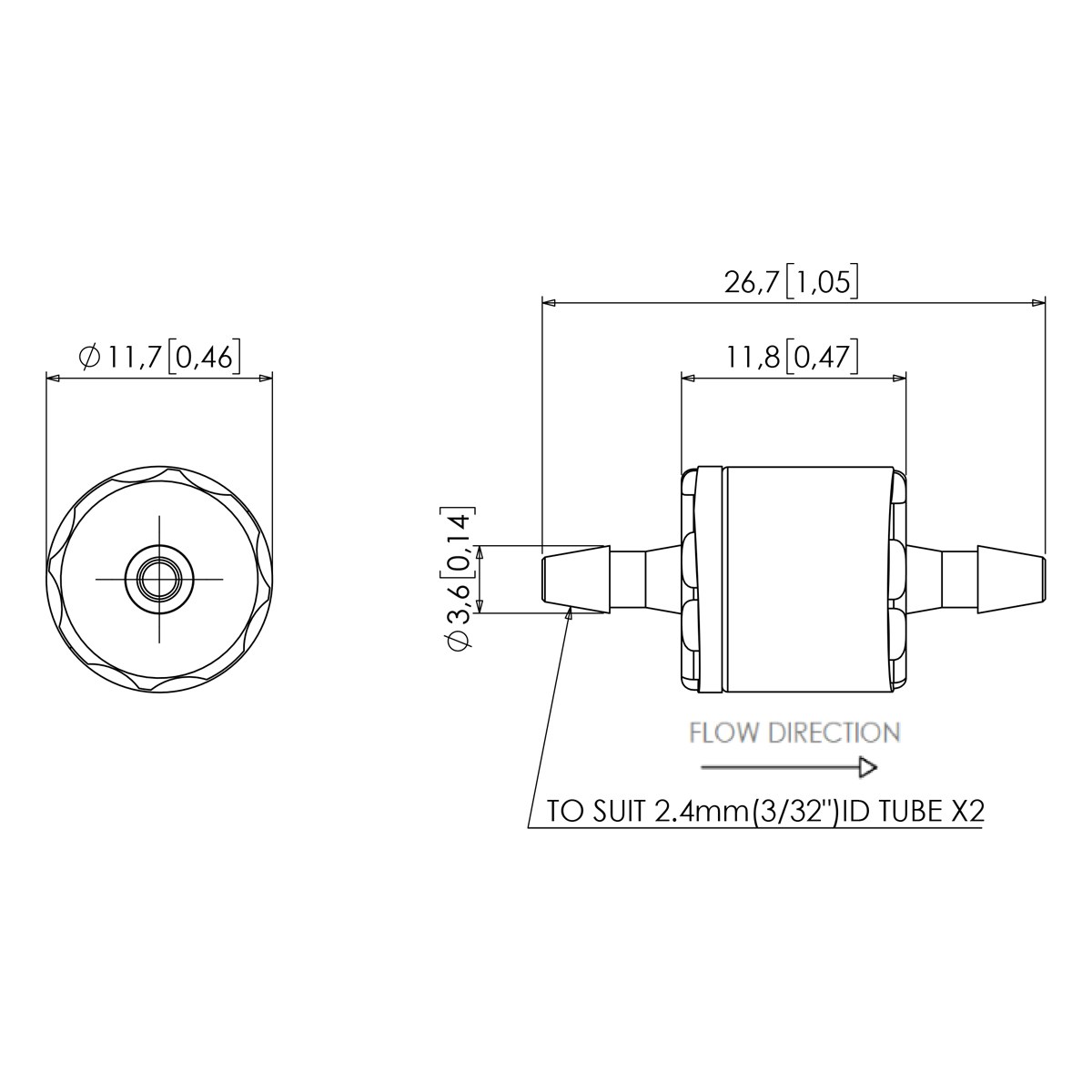

Dimensional Drawing (pdf)

3D model (IGS)
