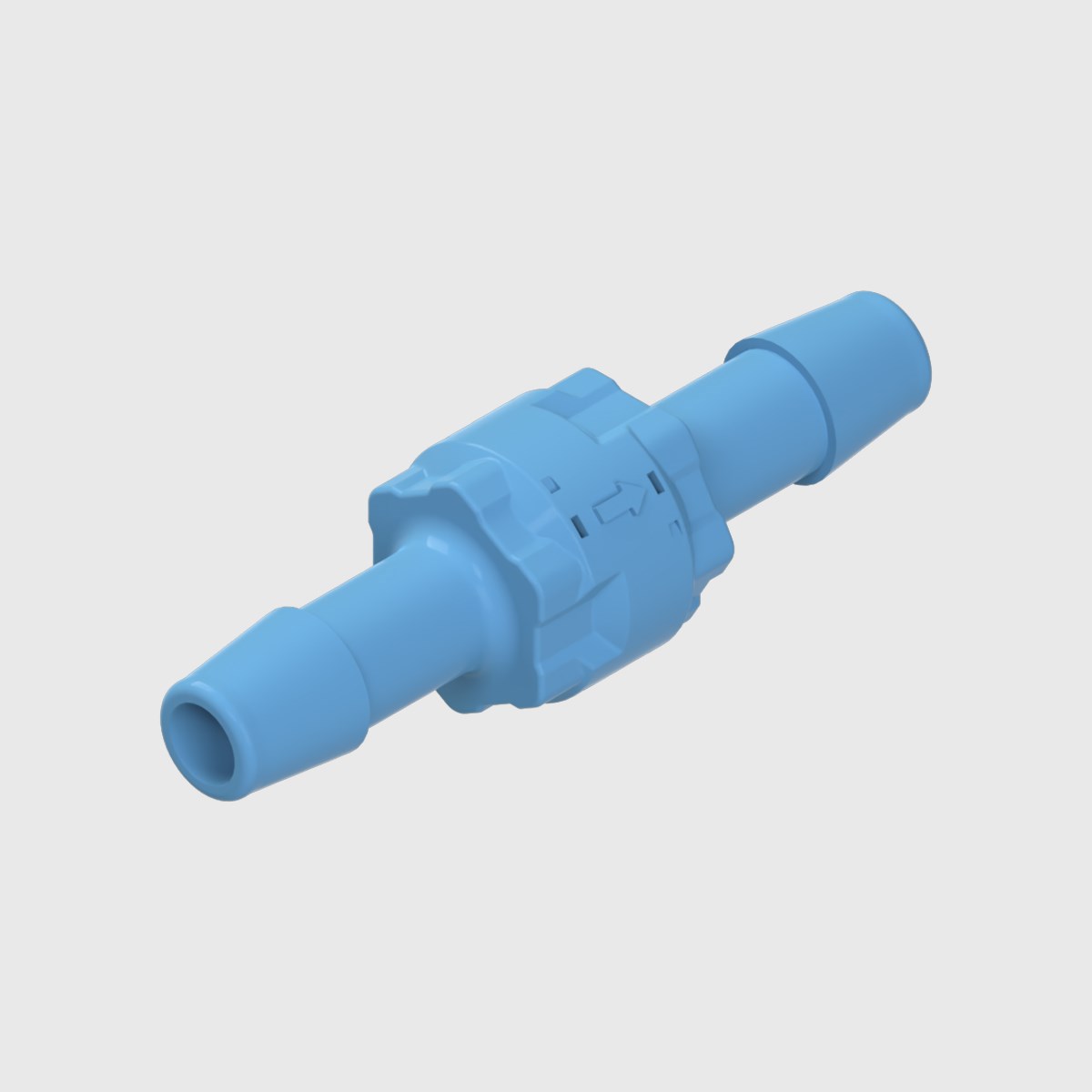

Modular Blue Check Valve, Buna-N (Nitrile) Seals, 3/8" Barb Input and Output, Cracking Pressure 3 psi

Modular Blue Check Valve, Buna-N (Nitrile) Seals, 3/8" Barb Input and Output, Cracking Pressure 3 psi

E-C58-PG-1GB1GB-N3

Modular Blue Check Valve, Buna-N (Nitrile) Seals, 3/8" Barb Input and Output, Cracking Pressure 3 psi

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Modular Blue Check Valve, Buna-N (Nitrile) Seals, 3/8" Barb Input and Output, Cracking Pressure 3 psi
£9.70+ VAT
Add To Wishlist
Quantity
Price

1 - 250

£9.70

251 - 500

£9.22

501

£8.73

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-C58-PG-1GB1GB-N3

Modular Blue Check Valve, Buna-N (Nitrile) Seals, 3/8" Barb Input and Output, Cracking Pressure 3 psi

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Modular Blue Check Valve, Buna-N (Nitrile) Seals, 3/8" Barb Input and Output, Cracking Pressure 3 psi

Extended Description This check valve is generally used in pneumatic circuit which requires free flow in one direction, indicated with an arrow on the check valve, and no flow in the opposite direction

Ambient Temperature 5 to 50°C (41 to 122°F)

Mounting Style In-Line

Connection 1 To suit 3/8" (9.5mm) ID Tube

Connection 2 To suit 3/8" (9.5mm) ID Tube

Recommended Filtration To suit application and media used

Media Temperature 5 to 50°C (41 to 122°F)

Non-Wetted Materials Glass Filled Polypropylene

Wetted Materials Glass Filled Polypropylene, Polypropylene, Buna-N (Nitrile), 302 Stainless Steel

Max. Inlet Pressure 7 bar (100 psi)

Cracking Pressure 3 psi

Item Weight 0.0050Kg (5g)

ROHS Compliant Yes

Regulatory Information The Glass Filled Polypropylene materials are compliant to FDA 21 CFR 177.1500 / The Polypropylene materials are compliant to FDA 21 CFR 177.1520

REACH Compliant Yes

Other Technical Data Compatible with clean air. Modular assembly allows multiple combinations. Single barb design to improve seal and improve clamping. Unique push-in range. Female thread form options for 1/8" NPT, BSPT and BSPP fittings. Locking clip to prevent accidental disassembly. Easy to use cartridge for manifold assembly. Mixed imperial and metric combinations. Easy to take apart for R&D purposes. Multiple spring options to accommodate different cracking pressures available, 316 Stainless Steel spring available. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

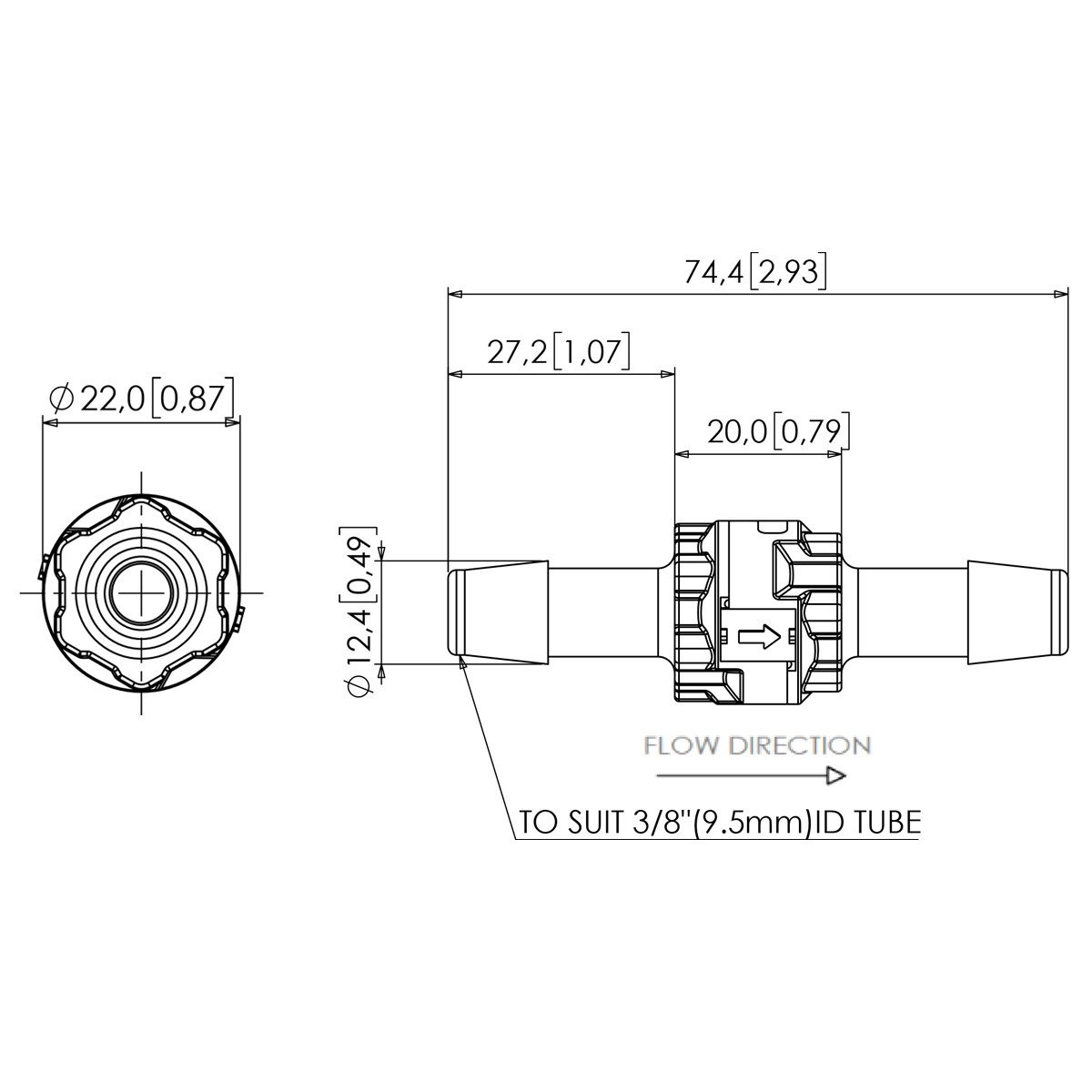

Dimensional Drawing (pdf)

3D model (IGS)
