High Pressure Brass Bi-directional Needle Valve, M5 Male/Female Ports

High Pressure Brass Bi-directional Needle Valve, M5 Male/Female Ports

E-N-180019

High Pressure Brass Bi-directional Needle Valve, M5 Male/Female Ports

In Stock
High Pressure Brass Bi-directional Needle Valve, M5 Male/Female Ports
£14.60+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£14.60

10 - 24

£13.87

25 - 49

£13.14

50 - 99

£12.41

100 - 249

£11.68

250 - 499

£10.95

500

£10.22

Eox Shop reserve the right to amend pricing in line with currency fluctuations.
Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-N-180019

High Pressure Brass Bi-directional Needle Valve, M5 Male/Female Ports

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description High Pressure Brass Bi-directional Needle Valve, M5 Male/Female Ports

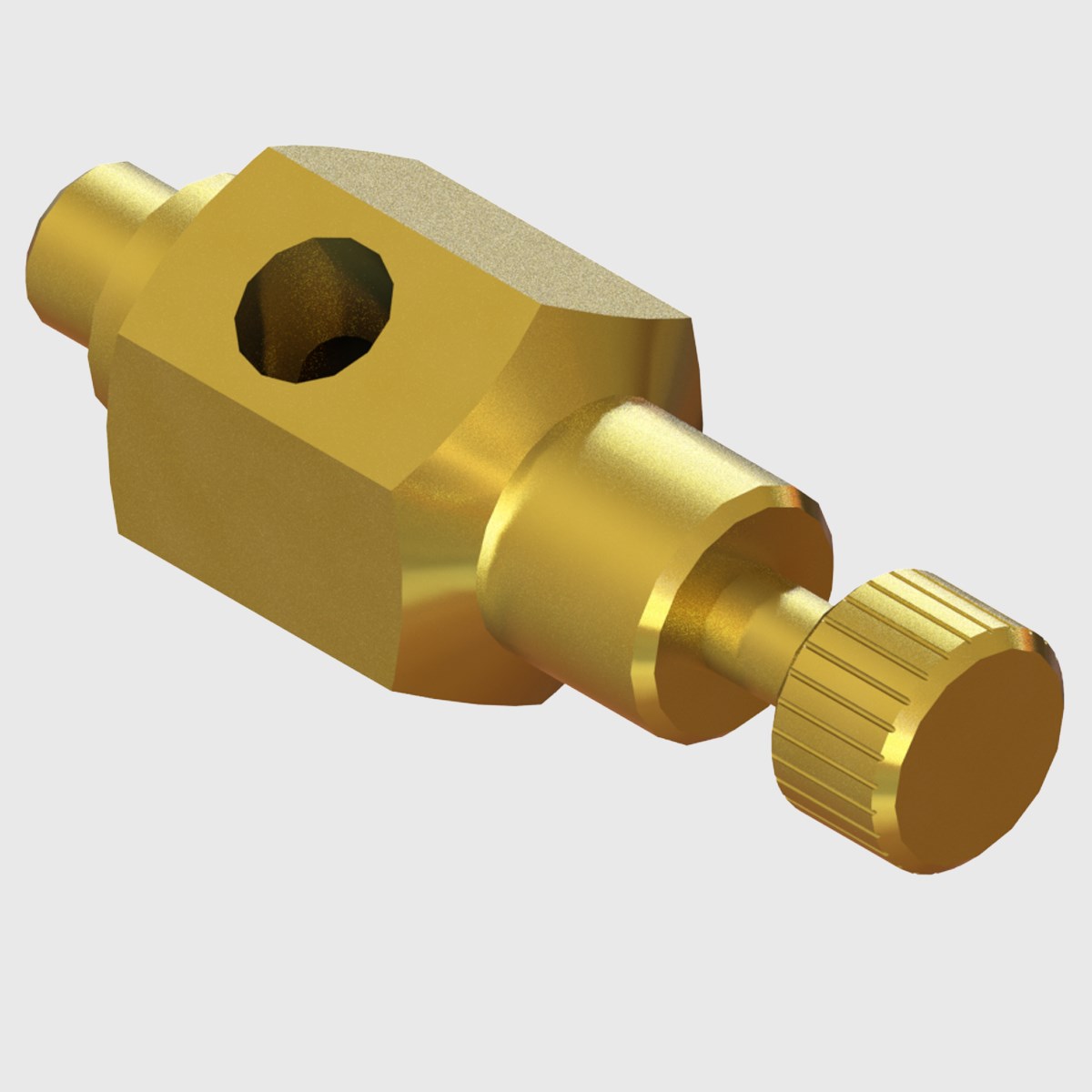

Extended Description Miniature high pressure Bi-directional needle valve with a Brass body c/w M5 male threaded Inlet and M5 female threaded Outlet, Stainless Steel needle, Brass adjusting knob and Buna-N seal

Ambient Temperature 0°C to 110°C (32°F to 230°F)

Mounting Style Direct via M5 Male Thread

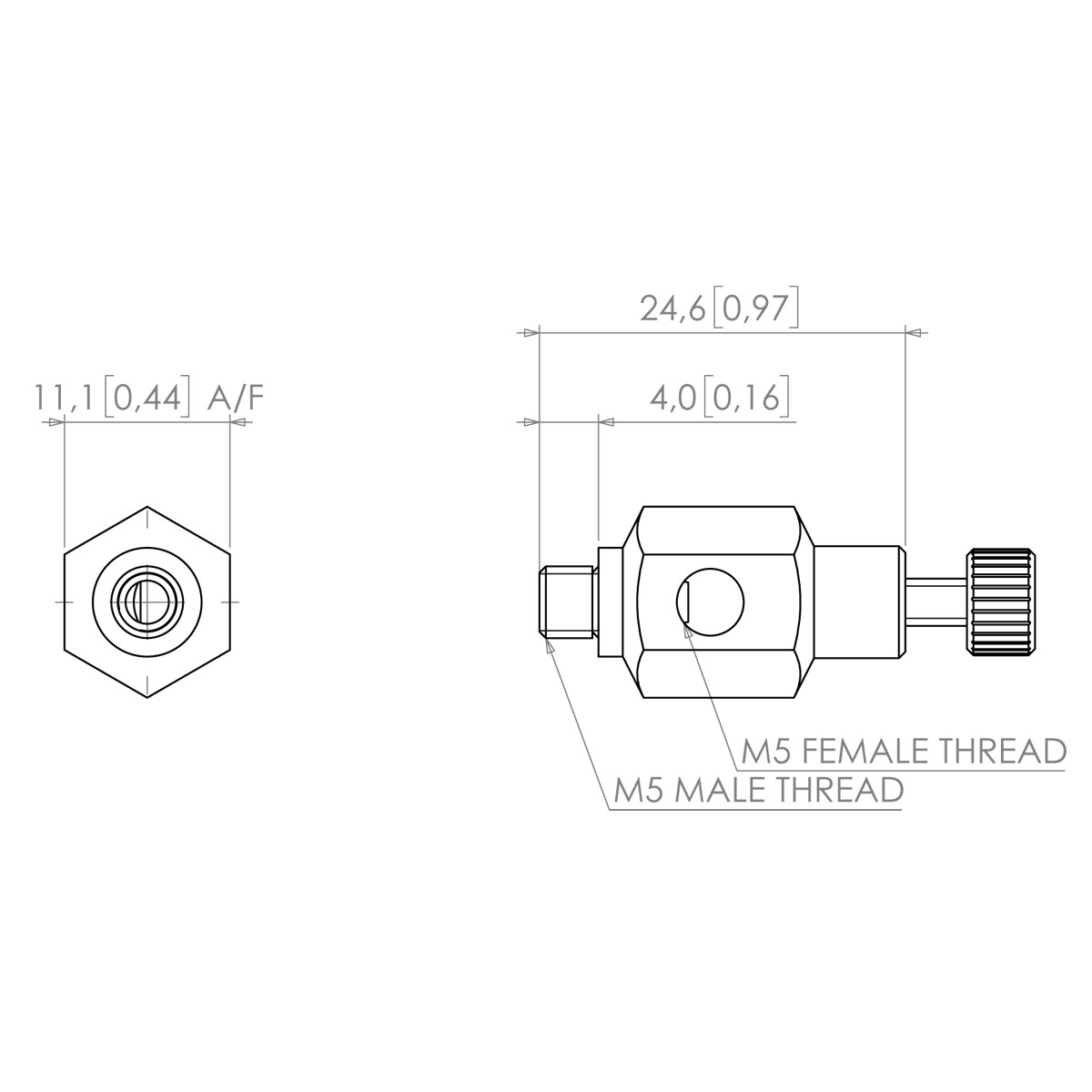

Connection 1 M5 Male Thread

Connection 2 M5 Female Thread

Recommended Filtration 5 micron

Media Temperature 0°C to 110°C (32°F to 230°F)

Non-Wetted Materials Brass, Stainless Steel

Wetted Materials Brass, Stainless Steel, Buna-N

Cleanroom Manufactured No

Max. Inlet Pressure 138 bar (2000 psi)

Operating Pressure 0 to 138 bar (0 to 2000 psi)

Item Weight 14g (0.49oz)

ROHS Compliant Yes

Regulatory Information None

REACH Compliant Yes

Other Technical Data This needle valve has a 3° pin angle, the ports are orientated at 90°. Media compatibility includes compressed air, gas, oil and water. Flow Control & Needle Valves are used to set the rate of flow in a pneumatic circuit. Although the basic function is flow restriction, the fundamental difference between the two is the Needle Valve controls flow in both directions (Bi-directional) and the Flow Control Valve controls flow in only one direction (Unidirectional) allowing free flow in the opposite direction. A finely threaded stem (needle) allows gradual adjustment of the amount of controlled flow passing through. Flow enters the input, travels through an orifice determined by the tapered stem (needle) and out through the output. The Flow Control (Unidirectional) features a by-pass check which allows free flow from the output port back through the input port. Eoxshop offers a variety of configurations in both Unidirectional and Bi-directional styles, this includes various mounting and porting options as well as construction materials. Flow control and Needle valves are not guaranteed to be leak tight and therefore should not be considered to be or used as a shut off valve. Options of EPDM and Viton sealing are applicable upon request. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information
