3 mm OD, 1.8 mm ID Nylon Tube, Natural Colour - 115 Shore A

3 mm OD, 1.8 mm ID Nylon Tube, Natural Colour - 115 Shore A

Name: 3 mm OD, 1.8 mm ID Nylon Tube, Natural Colour - 115 Shore A
SKU: E-T-160028
Price: 38.280000 GBP
Availability: OutOfStock

E-T-160028

3 mm OD, 1.8 mm ID Nylon Tube, Natural Colour - 115 Shore A

E-T-160028

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

3 mm OD, 1.8 mm ID Nylon Tube, Natural Colour - 115 Shore A

£38.28+ VAT

Add To Wishlist

Quantity

Price

1 - 9

£38.28

10 - 19

£32.54

20 - 29

£28.71

£24.88

Eox Shop reserve the right to amend pricing in line with currency fluctuations.

Looking to purchase a large quantity? Click here

Product Details

Product Code E-T-160028

Product Name 3 mm OD, 1.8 mm ID Nylon Tube, Natural Colour - 115 Shore A

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters Company *

Please select a valid Title, the maximum length is 12 characters. Title *

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters. First Name *

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters. Last Name *

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9 Contact Number *

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one Email Address *

Please enter a QuantityPlease enter a valid number between 10 and 999999 Quantity *

Opt in to receive updates regarding new products or promotions

Please confirm you are not a robot.

We have been unable to verify your identity, please confirm you are not a robot.

Product Information
Downloads
Sample request
Product Enquiry

Description 3 mm OD, 1.8 mm ID Nylon Tube, Natural Colour - 115 Shore A

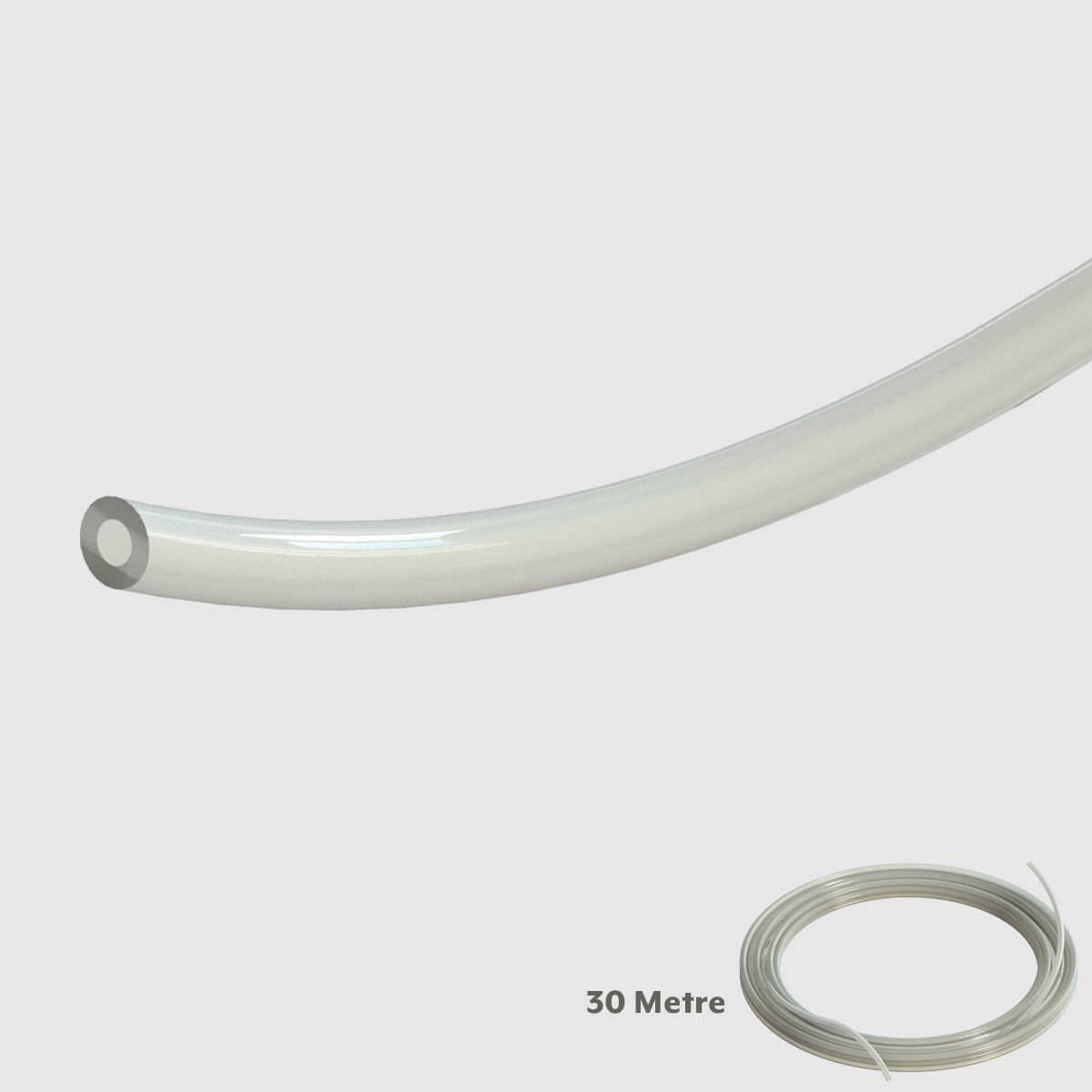

Extended Description 30 Metre coil (100 Feet) of UV Stabilized Natural Colour Nylon 11 with an outside diameter of 3 mm, an internal diameter of 1.8 mm and a wall thickness of 0.60 mm suitable for use with push-in and compression style fittings

Non-Wetted Materials Nylon

Wetted Materials Nylon

Cleanroom Manufactured Uncontrolled environment

Temperature Range -51°C – 93°C (-60°F – 200°F)

Working Pressure 4:1 Safety Factor

Operating Range at 25⁰C Vacuum to 28.27 bar (410 psi) at 25°C (75°F)

Diameter Tolerance +0.051 mm / -0.1 mm (+0.002" / -0.004")

Operating Range at 65⁰C Vacuum to 16.55 bar (240 psi) at 65°C (150°F)

Item Weight 0.15kg (150 gram)

ROHS Compliant Yes

Regulatory Information Meets UL94HB Testing requirements

CE Mark No

REACH Compliant Yes

Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Animal derivative free, Latex free, Conflict minerals free. UV stailized. For further information please contact us on +44 (0)2392 266031.

Durometer 115 Shore A

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms

To request a sample for this product, please fill out the form.
