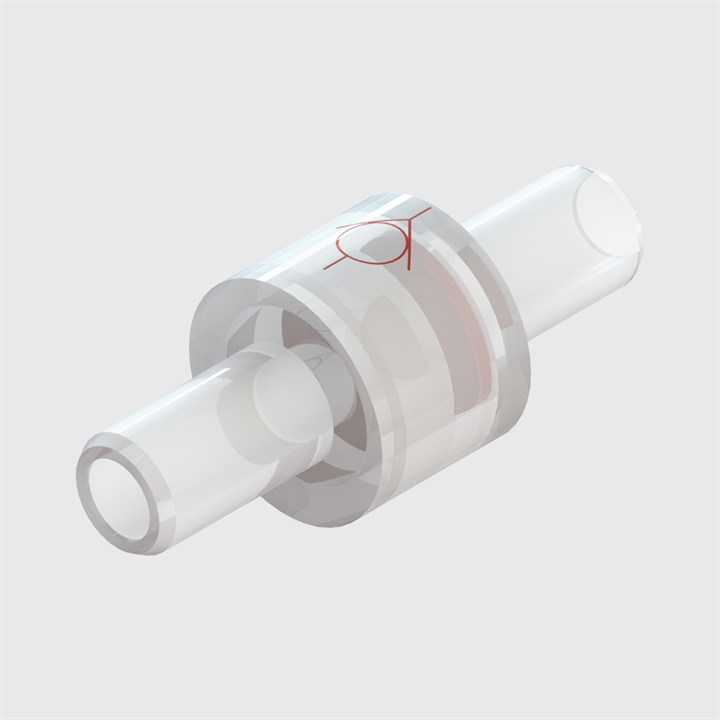

Polypropylene Check Valve, 1/16" Straight Ports, Cracking Pressure < 0.8" H2O (Red Symbol)

Polypropylene Check Valve, 1/16" Straight Ports, Cracking Pressure < 0.8" H2O (Red Symbol)

E-C-180019

Polypropylene Check Valve, 1/16" Straight Ports, Cracking Pressure < 0.8" H2O (Red Symbol)

In Stock
Polypropylene Bodied Check Valve, (Red Symbol), Internal Silicone Disc, 1.6mm (1/16") ID Tube, Cracking Pressure < 0.8" H2O
£9.50+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£9.50

10 - 99

£8.55

100 - 499

£7.60

500 - 1999

£6.65

2000 - 4999

£5.70

5000

£5.22

Eox Shop reserve the right to amend pricing in line with currency fluctuations.
Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-C-180019

Polypropylene Check Valve, 1/16" Straight Ports, Cracking Pressure < 0.8" H2O (Red Symbol)

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Polypropylene Bodied Check Valve, (Red Symbol), Internal Silicone Disc, 1.6mm (1/16") ID Tube, Cracking Pressure < 0.8" H2O

Extended Description A miniature in-line Polypropylene bodied check valve with an internal Silicone disc and straight ports to suit 1/16" ID tubing. Designed to have a low cracking pressure and a minimum differential for forward flow

Ambient Temperature 5°C – 48°C (40°F – 120°F)

Mounting Style In-line

Connection 1 To suit 1.6mm (1/16") ID Tube

Connection 2 To suit 1.6mm (1/16") ID Tube

Recommended Filtration Depending on application

Media Temperature 5°C – 48°C (40°F – 120°F)

Non-Wetted Materials Polypropylene

Wetted Materials Polypropylene, Silicone

Cleanroom Manufactured No

Max. Inlet Pressure 0.69 bar (10 psi)

Flow Rate Forward - 3.4 L/min (0.12 SCFM) at 1 psi supply, Reverse - ≤ 0.0033 L/min (0.20 SCIM)

Cracking Pressure ≤ 0.8" H2O (0.03 psi)

Item Weight 0.00006Kg (0.06g)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data The operation of the check valve is based on the movement of a small disc. The disc shifts within the housing as the pressure differential changes from forward to reverse. A flat surface on one side of the disc seals off the flow, whilst the other side allows flow to pass. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information
