Eox Couplings
Discover our wide range of couplings and find out more about each of our ranges.
We have a range of downloadable information including our new Couplings catalogue which showcases our full range. Our Eox catalogue gives you an overview on some of our key ranges, we also have a pictorial version available.
Filters
Eox supply a large selection of micro filters to suit many flow control applications. By filtering out these particles, this will stop them from passing through the system and ultimately protect the components and prolong the lifespan of the parts.
We offer filtration from as low as 0.10 Micron up to250 Micron. There are many different material options available for both the filter element and the body housing as well as many connection styles from luer to luer, threaded, barb to barb and push-in
About Our Couplings Book
At Eox we understand one size doesn’t fit all and have created our latest catalogue to help you find exactly what you need for your project or application. To help with your selection we’ve included:
- Detailed product data for individual components including pricing
- 1:1 images – representing actual component size
- Dimensional drawings to help with your design process
- A technical overview for each type of check valve

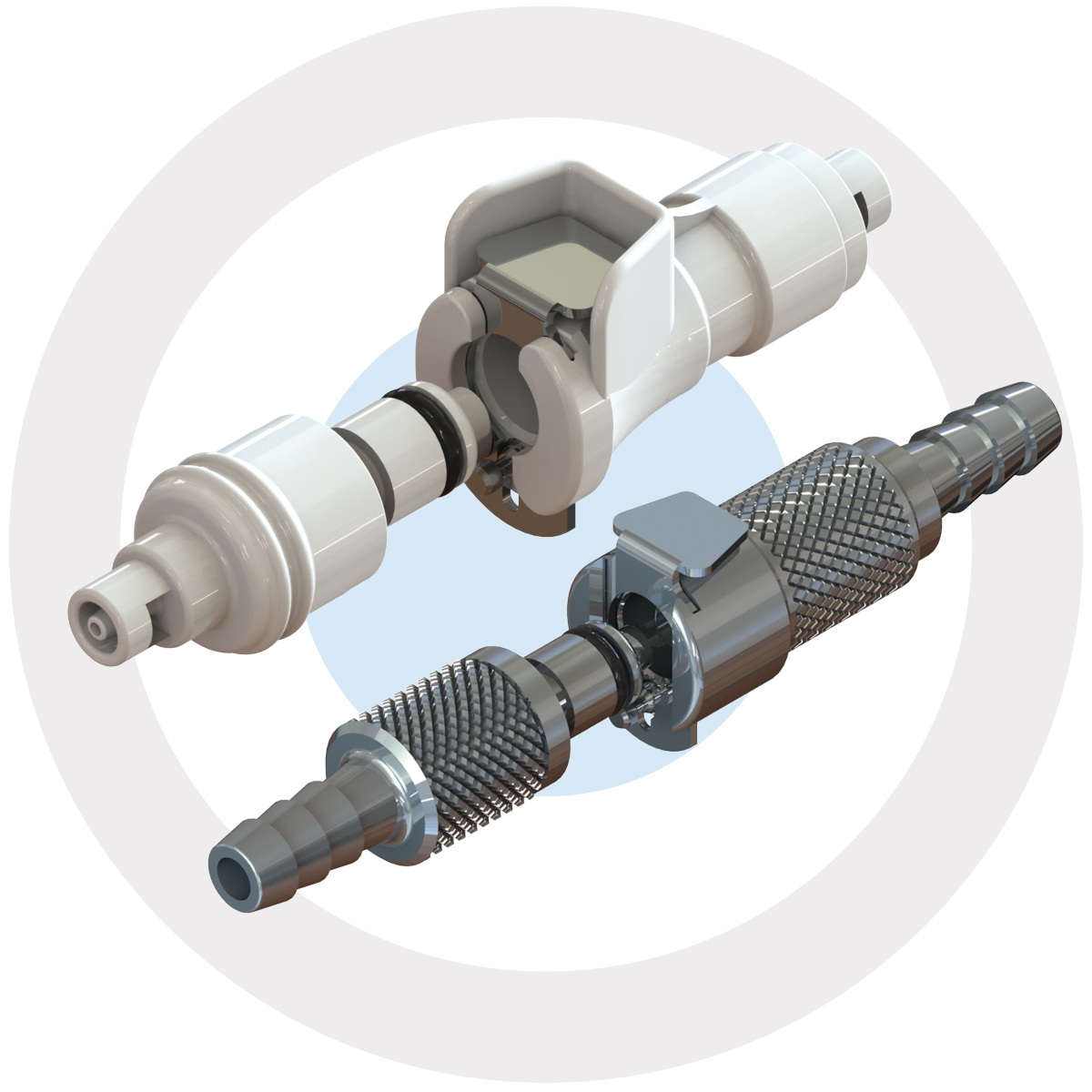

Thumb Latch - 1/8", 1/4" & 3/8" flow couplings
Thumb latch couplings are operated by means of a mechanical latch on the female coupling. This allows for one-handed connection and disconnection of the female and male halves. An audible ‘click’ confirms when the couplings are fully connected, providing a safe and secure connection. Once couplings are connected unrestricted free rotation prevents kinking and twisting of tubing/termination. Eox offers these in both plastic and metal. Click here to view our range of thumb latch couplings
Key features include:
• Audible click to ensure secure connection
• One-handed disconnection
• Easy to grip during operation
• Available in various mounting styles
• Medical grade material options available
• Connects with other thumb-latch type couplings
• Valved/Non-Valved options available
• Resistant to most chemicals and suitable for industrial and medical applications

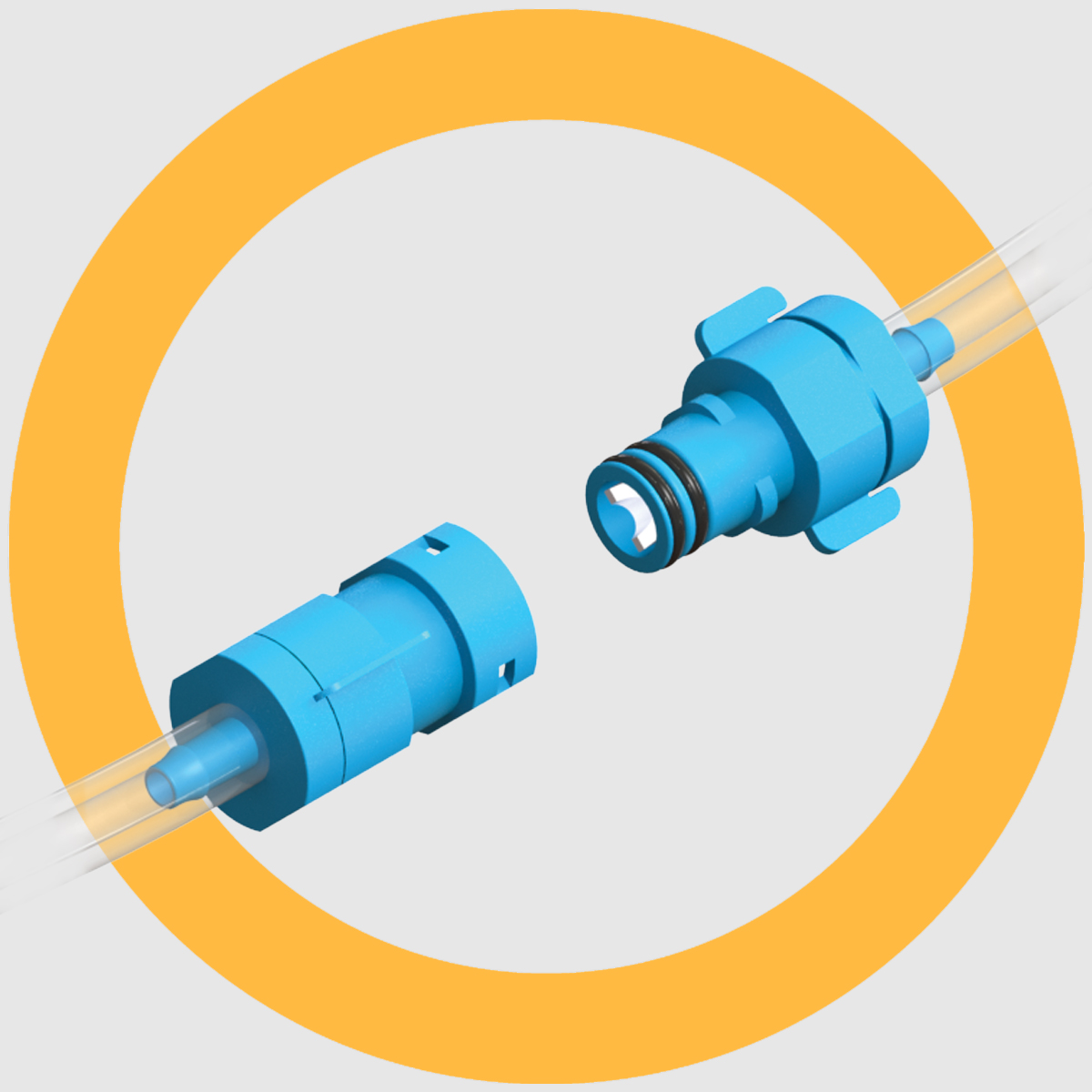

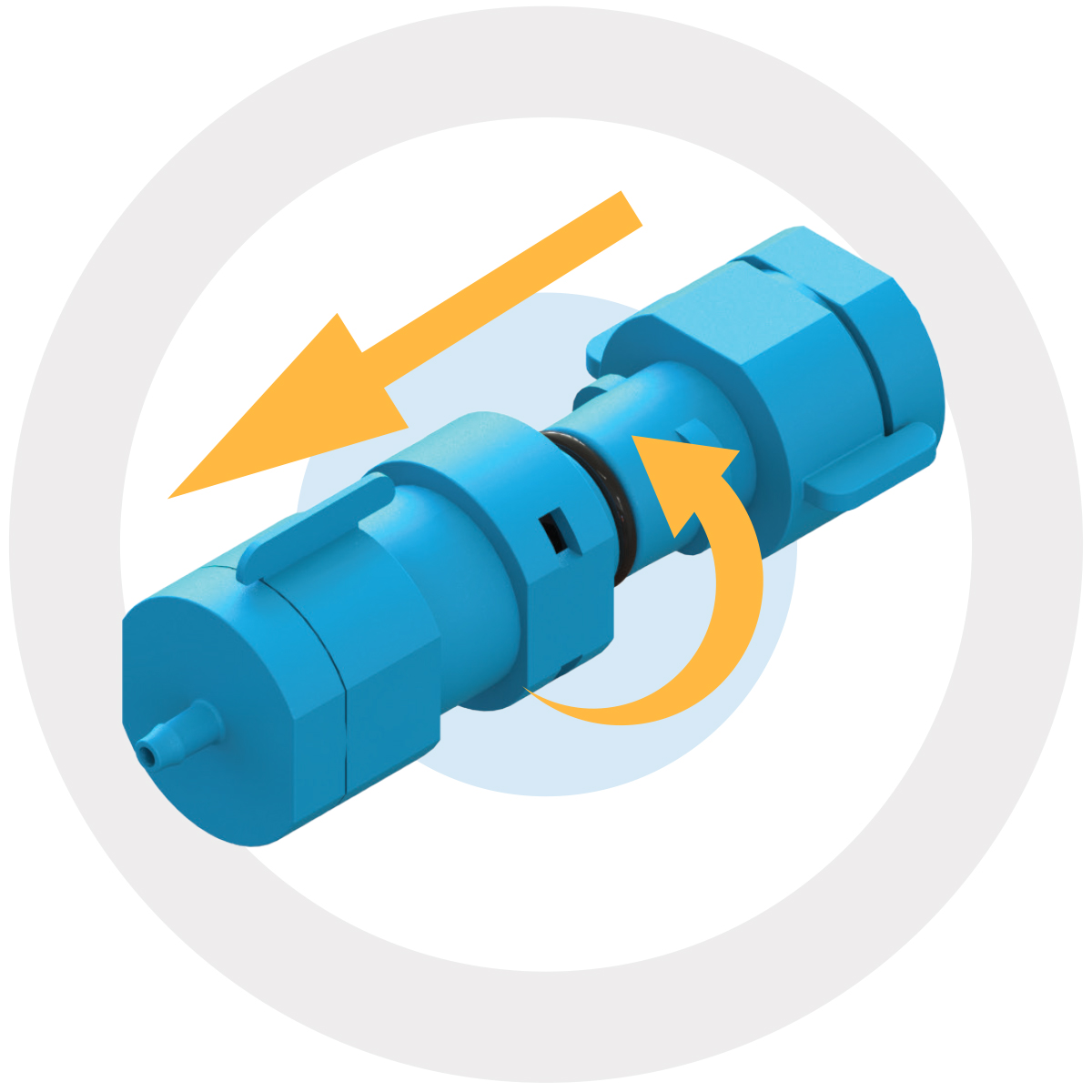

Twist Lock - Use these couplings up to 10,000 times
Twist lock couplings require a two-handed operation, twist to lock and twist to release.
These couplings are easy to use and to know when safely coupled. By way of an audible ‘click’ or a ‘hard stop’ you can be sure the couplings are fully connected, providing safe and secure use. It prevents kinked tubing and accidental disconnection during use.
Eox provides a huge range of media bag connections with twist-lock options along with a range for pouch fitments in male-female options. Click here to view our range of twist lock couplings
Key features include:
• Utilising the twist lock method the twist lock is easy to use and align
• Audible click to ensure a secure connection
• Quarter turn operation
• Resistant to most chemicals and suitable for industrial and medical applications
• Ideal for general purpose and single-use application
• Prevent misconnection with other types of connectors
• Cleanroom manufacturing available
• Double O-ring
• Wing feature

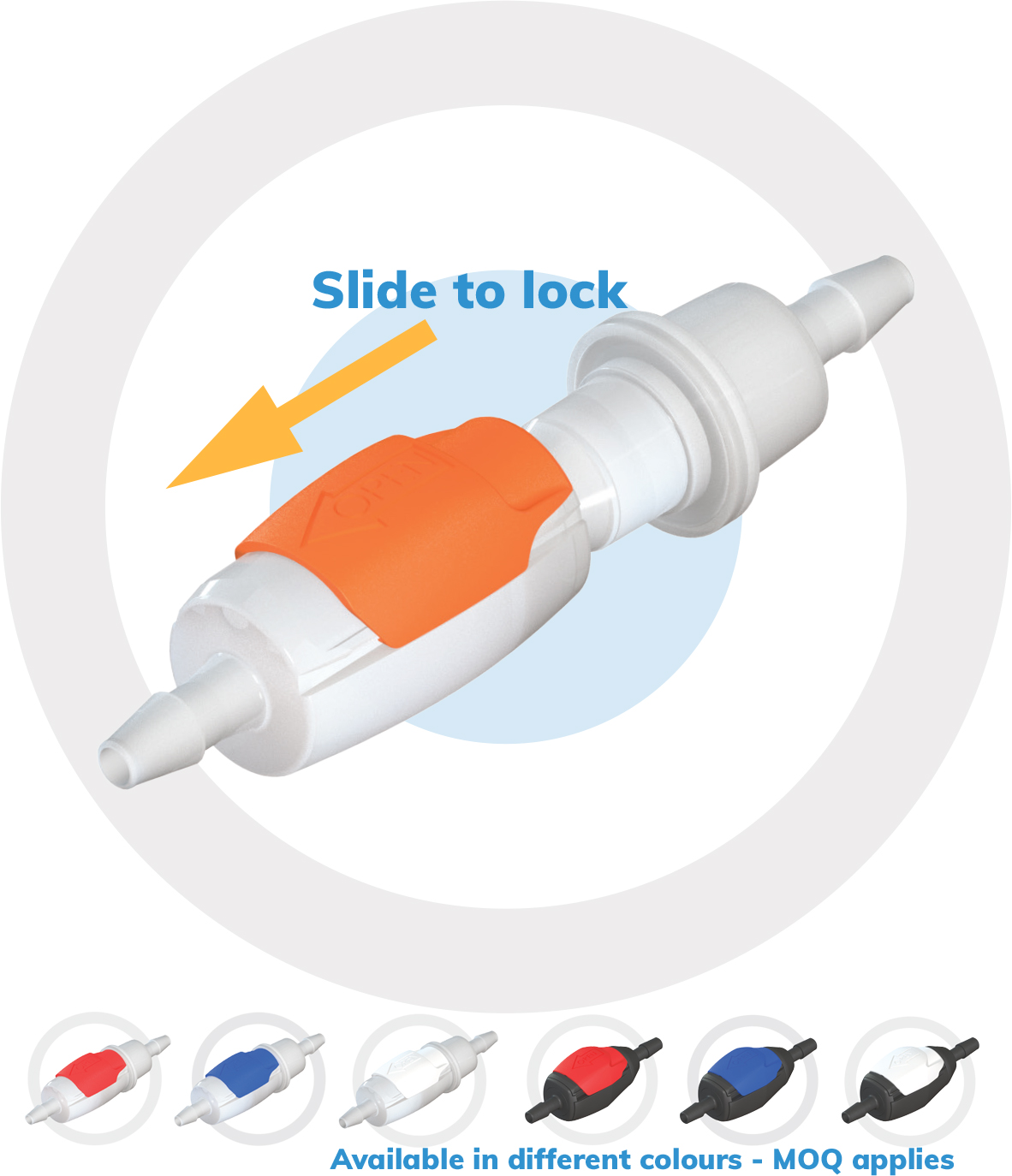

Sliding Latch - The spring free design allows larger volumes at low pressures
These sliding latch couplings can be connected with one hand by way of a sliding latch. An audible ‘click’ confirms correct connection. The ‘spring-free’ flow path allows for larger volumes to pass through at lower pressures, reducing restrictions and turbulence. The innovative design means on valved option couplings you have no leaking when disconnecting. These couplings are Aseptic - free from contamination caused by harmful bacteria, viruses, or other microorganisms; surgically sterile or sterilised. Other colours available on request. Click here to view our range of sliding latch couplings
Key features include:
• Audible click to ensure secure connection
• Single handed disconnection
• Safety slide release minimises accidental disconnections
• No leaking on Valved option couplings when disconnecting
• Spring free flow path
• Resistant to most chemicals and suitable for industrial and medical applications
• Valved/Non-Valved options available
• USP Class VI/ISO10993 compliant materials
• PP (Radiation, EtO)
• PVDF (Autoclave, Radiation, EtO)
• Cleanroom option on request
Blood Pressure - Reduce misconnection with our ISO 80369-5 couplings
The male half of this coupling complies with the blood pressure industry standard
ISO 80369-5, meaning it will interconnect with all other couplings designed to this standard. The tight dimensional specifications to meet ISO 80369 mean that misconnection with any other series of coupling is greatly reduced.
The ergonomic and lightweight design of the female coupling, and simple button operation, allow for single handed connection and disconnection. This ease of use and reduction in weight is meaning many end users are swapping out existing metal couplings for this design. Click here to view our range of blood pressure couplings
Key features include:
• ISO 80369-5
• Male connectors work well with both compliant and non-compliant bayonet-style female connectors on the market
• Significantly reduces the probability of misconnection
• Reliable elastomeric seals inside the body allows for connector rotation reducing tubing kinks
• Prevents accidental disconnect or kinked tubing
• Audible click when connected
• Single handed operation
• FDA approved
• Compatible with sterilisation process

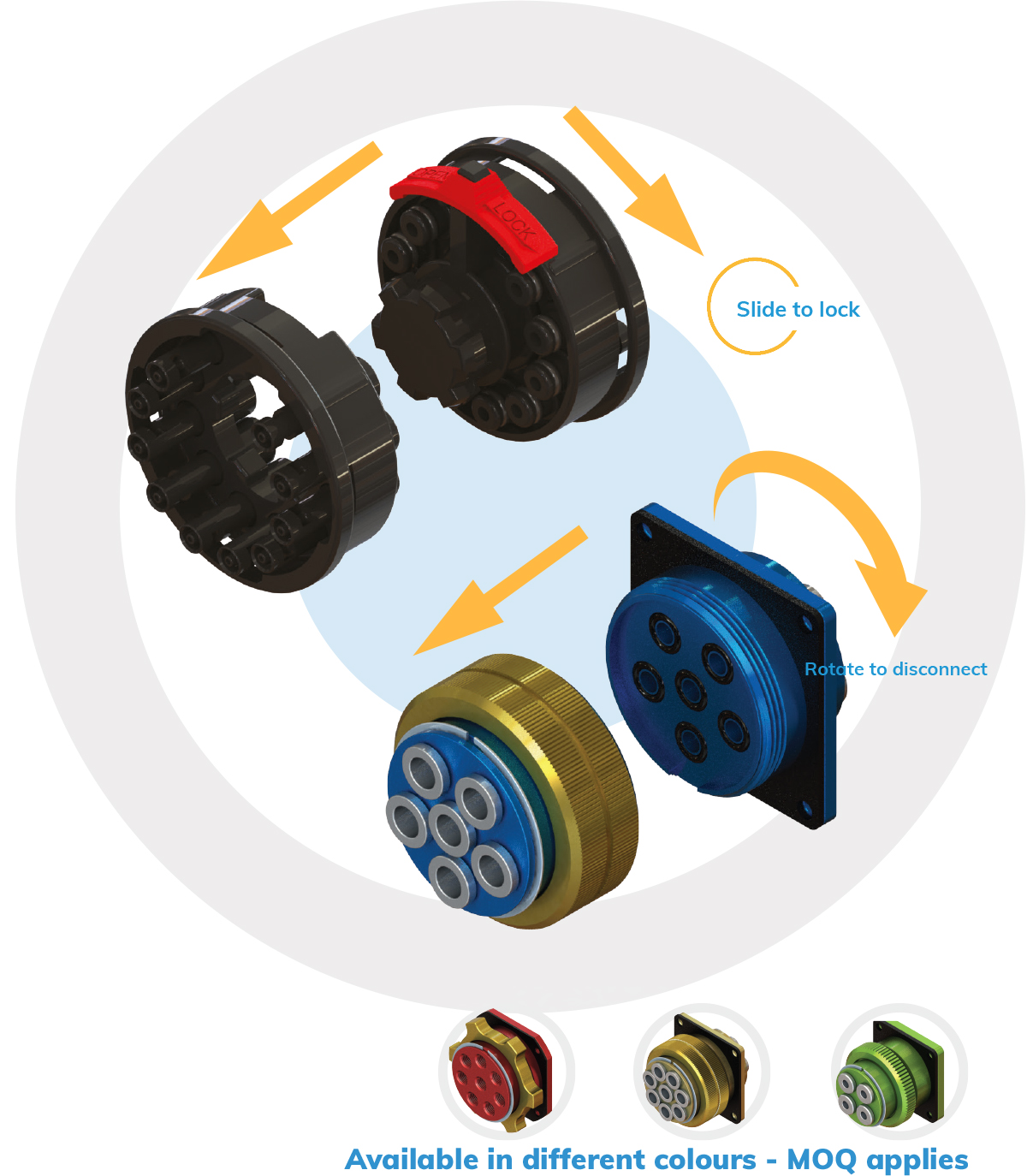

Multiple Bulkhead - Multi-line couplings reducing installation time
The multiple bulkhead coupling is ideal for connecting many media lines/bundle tubing, together at the same time. This allows for quick and easy swapping out of tooling/equipment, saving valuable downtime. Strong, but of lightweight plastic or anodised aluminium construction, they allow for easy handling, and a slide latch release allows for easy connection and disconnection of all lines simultaneously. Click here to view our range of multiple bulkhead couplings
Key features include:
• Multi line connection in single unit
• Fast efficient operation
• Reduce installation time
• Separate flow paths
• Valved/Non-Valved options available on socket side
• Keyed to prevent misalignment
• Resistant to most chemicals
Metal only:
• Different pressure in each channel - pressure and or vacuum in one coupling
• Different key options available
• Different colour options available on request

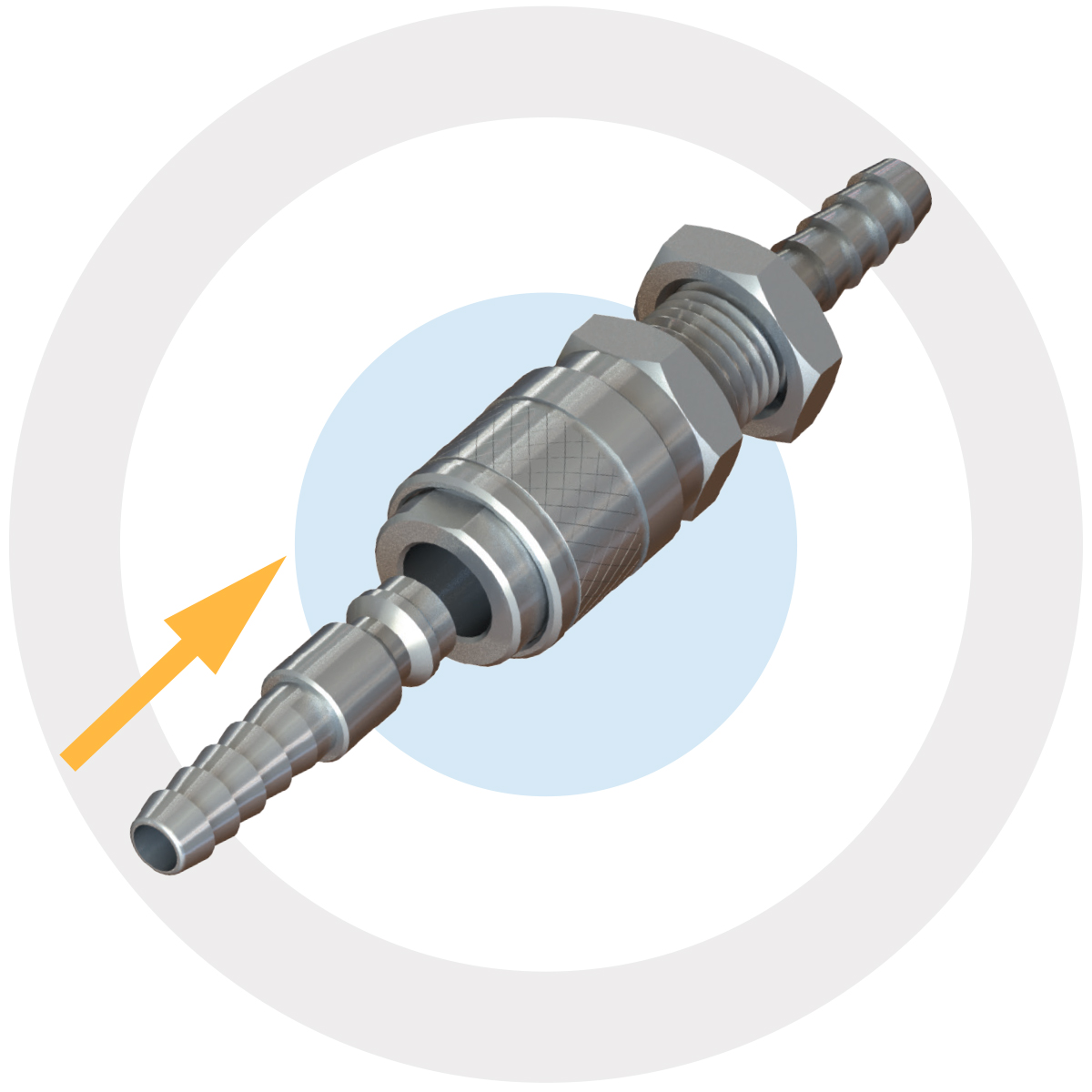

Sliding Collar - Safety side release minimises accidental disconnections
These sliding collar couplings can be connected with one hand by way of a sliding collar.
An audible ‘click’ confirms correct connection. Click here to view our range of sliding collar couplings
Key features include:
• Audible click to ensure secure connection
• Single handed disconnection
• Safety slide release minimises accidental disconnections
• Resistant to most chemicals and suitable for industrial and medical applications
• Valved/Non-Valved options available

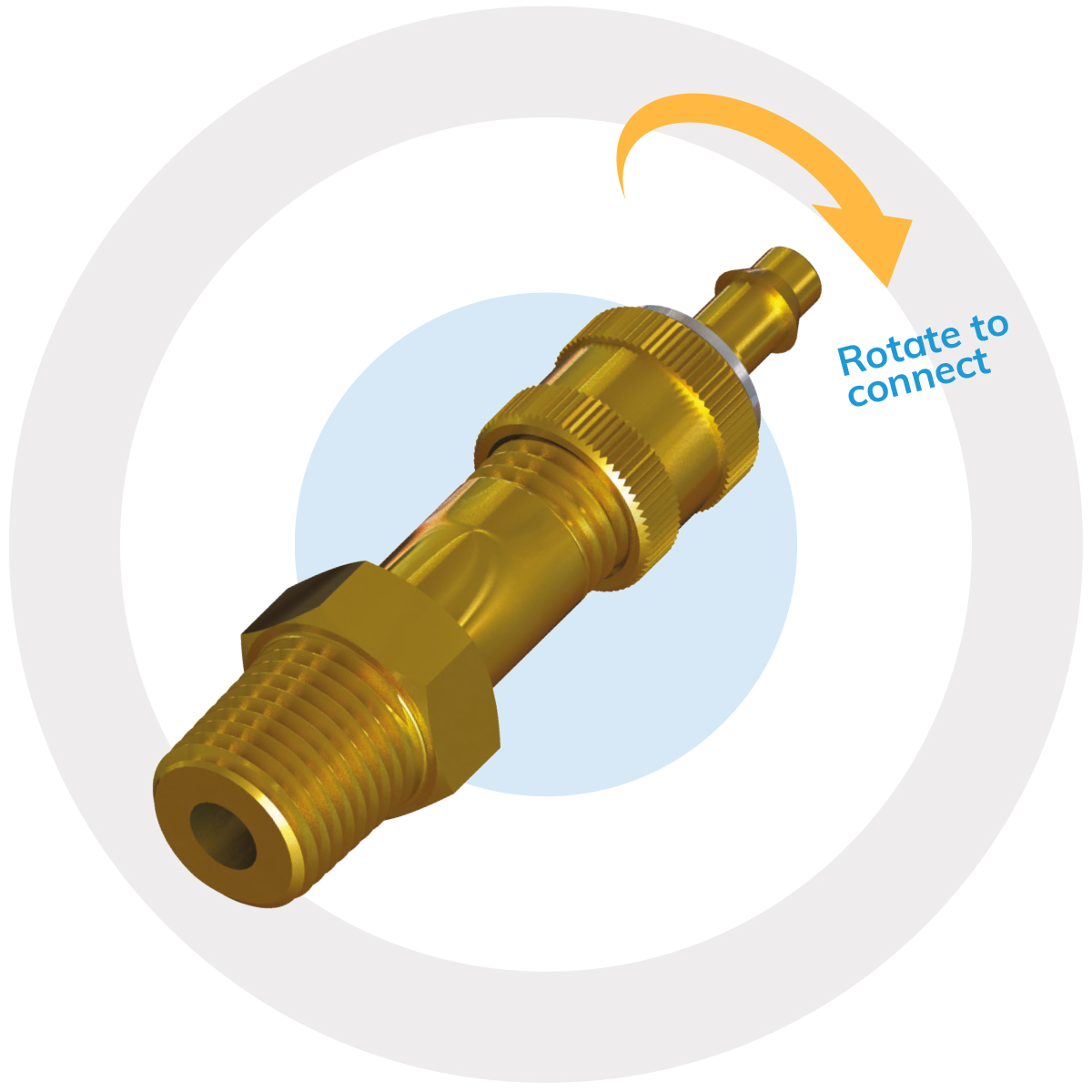

Screw Type - Maintain a connection with these couplings
Screw type couplings are designed to lock connectors together using a male and female thread. The couplings are coupled by simply screwing the socket and plug together until the stop is reached. Suitable for bespoke applications where the connection is required to be maintained and not disconnected often. Click here to view our range of screw type couplings
Key features include:
• One-handed disconnection
• Resistant to most chemicals and suitable for industrial and medical applications
• Valved/Non-Valved options available
• High pressure working range
• High and Low temperature working range
• Attractive appearance
• Aesthetic plating options
• Non-corrosive
