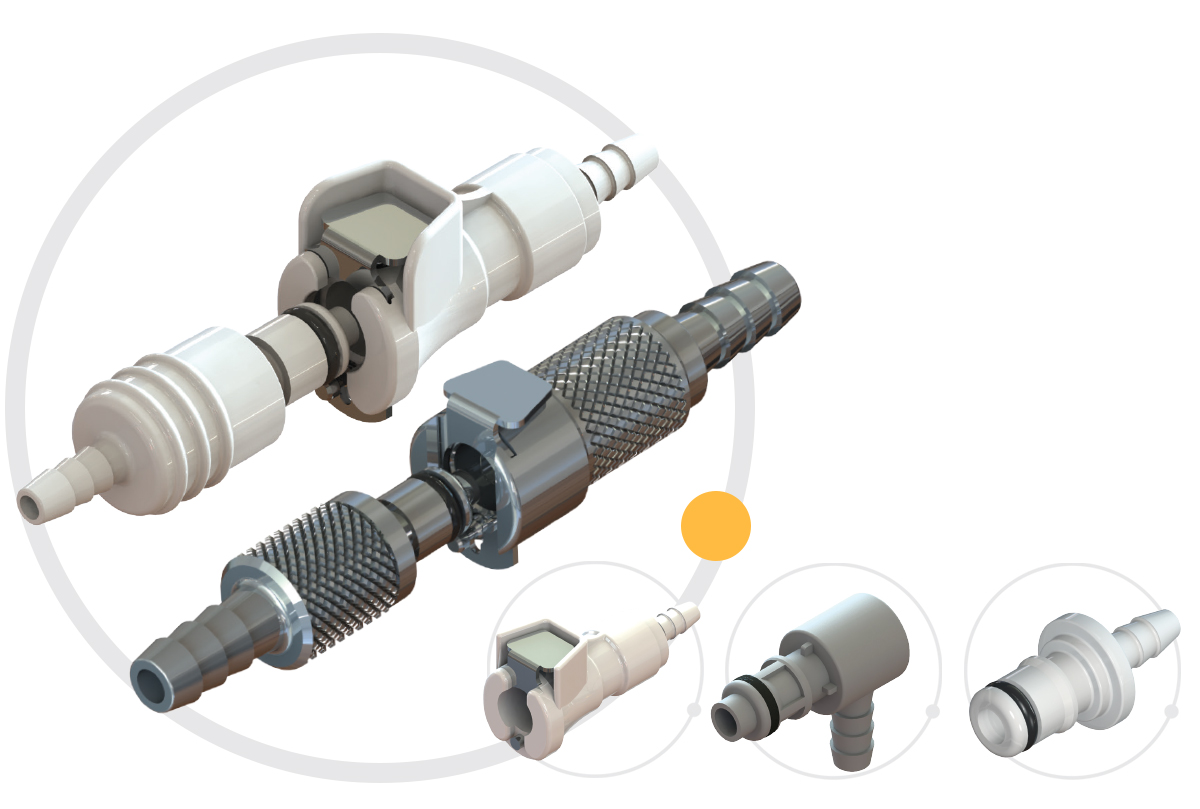

Thumb Latch - One handed disconnection

Thumb latch couplings are operated by means of a mechanical latch on the female coupling. This allows for one-handed connection and disconnection of the female and male halves. An audible ‘click’ confirms when the couplings are fully connected, providing a safe and secure connection. Once couplings are connected unrestricted free rotation prevents kinking and twisting of tubing/termination. Eox offers these in both plastic and metal. Click here to view our range of thumb latch couplings

Key features include:

•  Audible click to ensure secure connection
•  One-handed disconnection
•  Easy to grip during operation
•  Available in various mounting styles
•  Medical grade material options available
•  Connects with other thumb-latch type couplings
•  Valved/Non-Valved options available
•  Resistant to most chemicals and suitable for industrial and medical applications

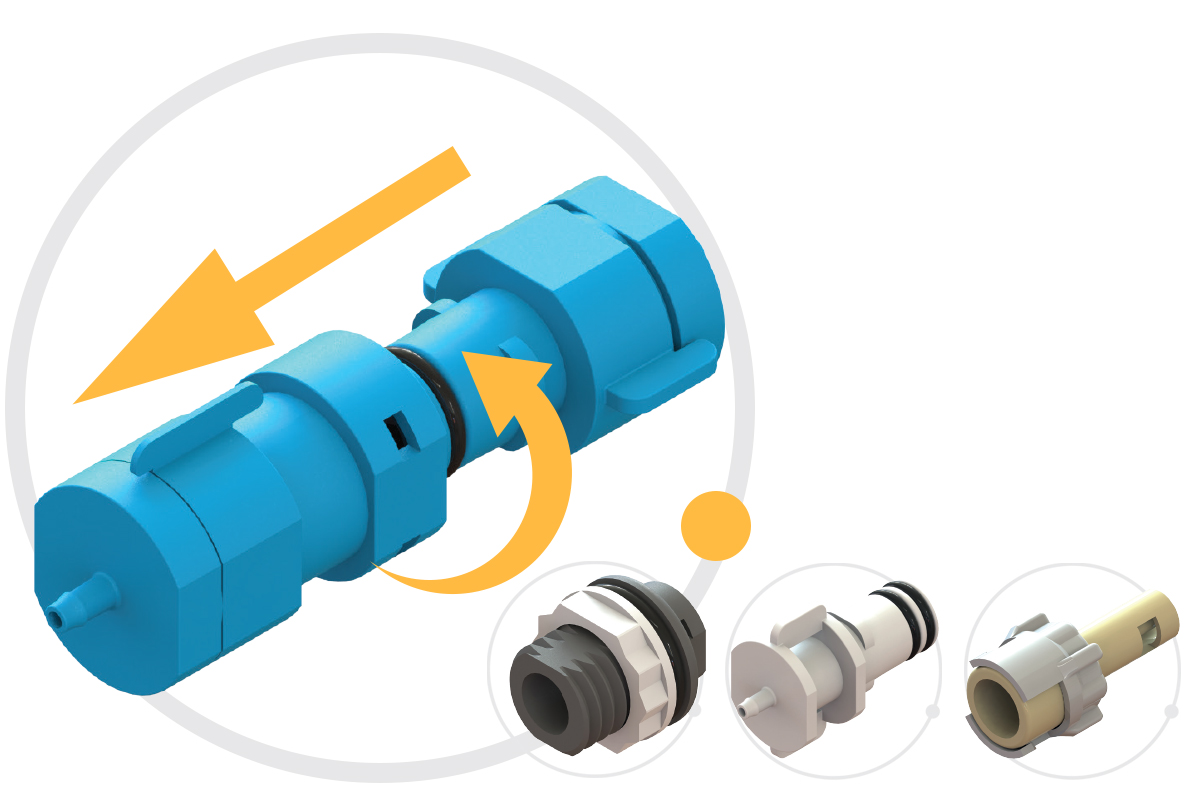

Twist Lock - Prevent misconnection with other types of connectors

Twist lock couplings require a two-handed operation, twist to lock and twist to release. These couplings are easy to use and to know when safely coupled. By way of an audible ‘click’ or a ‘hard stop’ you can be sure the couplings are fully connected, providing safe and secure use. It prevents kinked tubing and accidental disconnection during use.
Eox provides a huge range of media bag connections with twist-lock options along with a range for pouch fitments in male-female options. Click here to view our range of twist lock couplings

Key features include:

• Utilising the twist lock method the twist lock is easy to use and align
• Audible click to ensure a secure connection
• Quarter turn operation
• Resistant to most chemicals and suitable for industrial and medical applications
• Ideal for general purpose and single-use application
• Cleanroom manufacturing available
• Double O-ring
• Wing feature

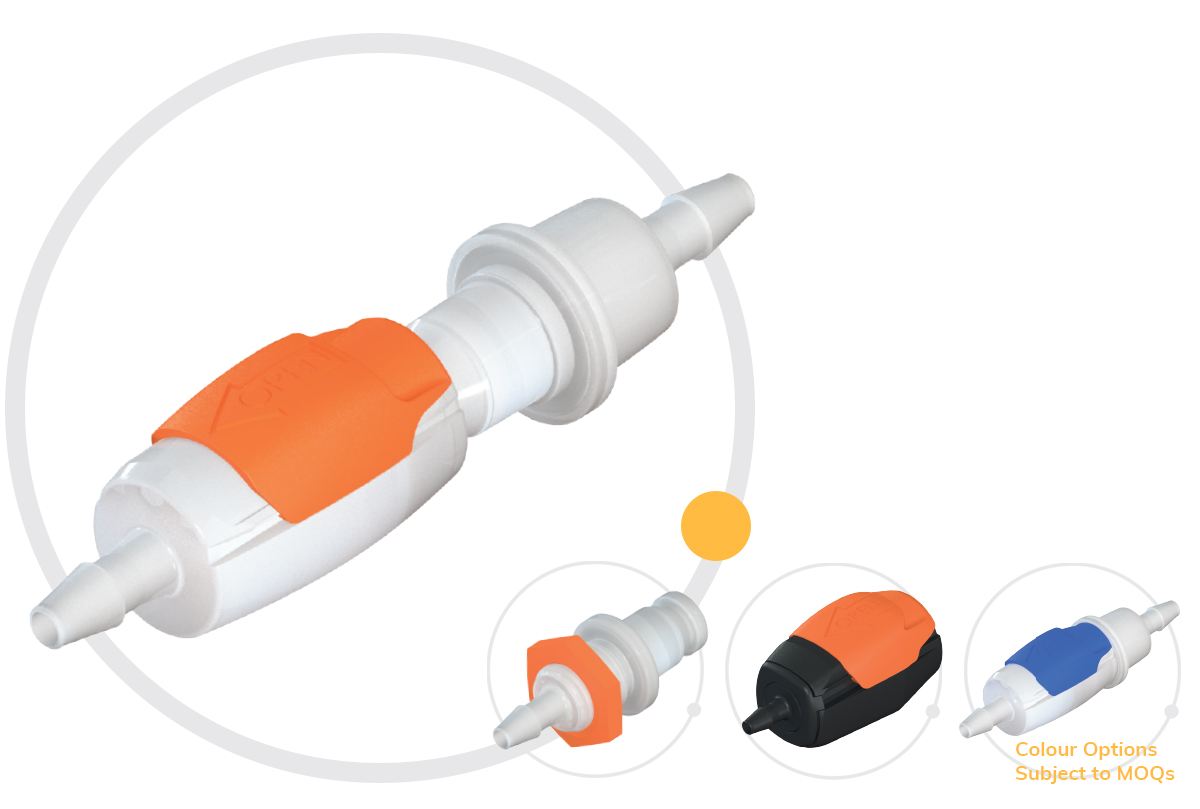

Sliding Latch - Aseptic & spring free flow path

These sliding latch couplings can be connected with one hand by way of a sliding latch. An audible ‘click’ confirms correct connection. The ‘spring-free’ flow path allows for larger volumes to pass through at lower pressures, reducing restrictions and turbulence. The innovative design means on valved option couplings you have no leaking when disconnecting. These couplings are Aseptic - free from contamination caused by harmful bacteria, viruses, or other microorganisms; surgically sterile or sterilised. Other colours available on request. Click here to view our range of sliding latch couplings

Key features include:

• Audible click to ensure secure connection
• Single handed disconnection
• Safety slide release minimises accidental disconnections
• No leaking on Valved option couplings when disconnecting
• Spring free flow path
• Resistant to most chemicals and suitable for industrial and medical applications
• Valved/Non-Valved options available
• USP Class VI/ISO10993 compliant materials
• PP (Radiation, EtO)
• PVDF (Autoclave, Radiation, EtO)
• Cleanroom option on request

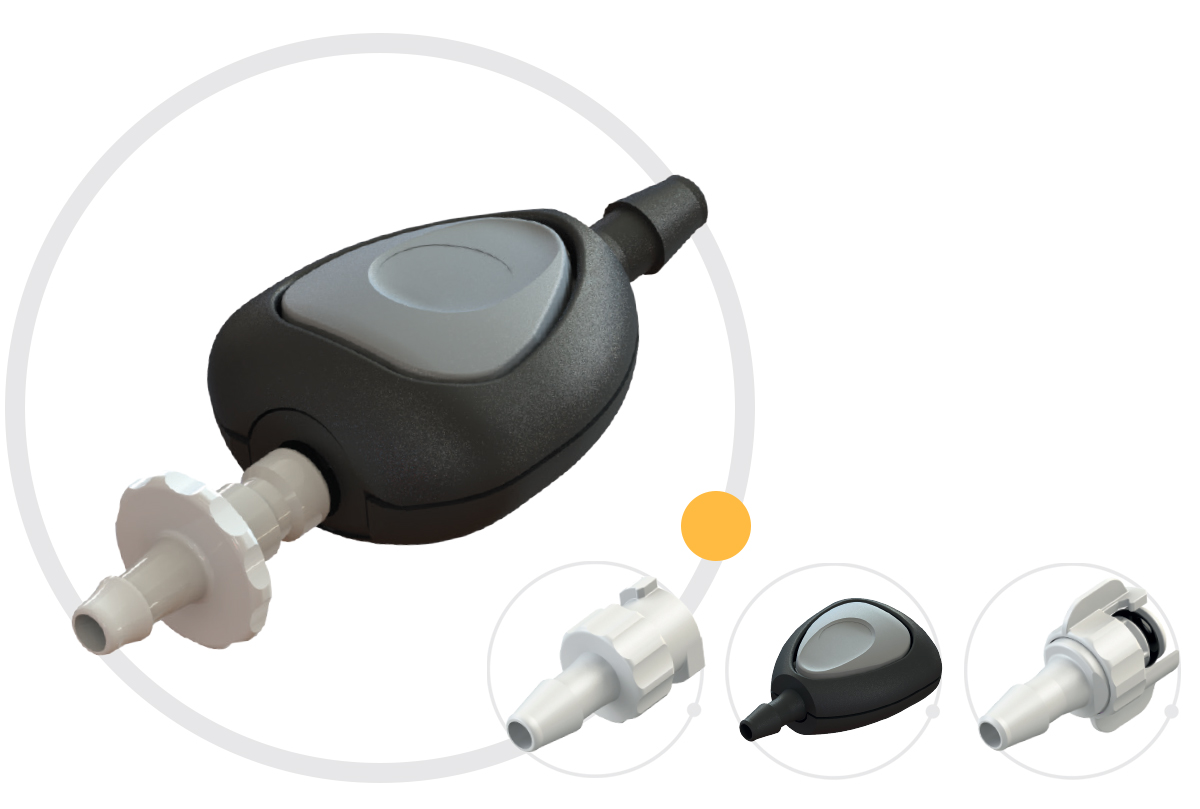

Blood Pressure - Reduce misconnection with our ISO 80369-5 couplings

The male half of this coupling complies with the blood pressure industry standard ISO 80369-5, meaning it will interconnect with all other couplings designed to this standard. The tight dimensional specifications to meet ISO 80369 mean that misconnection with any other series of coupling is greatly reduced.

The ergonomic and lightweight design of the female coupling, and simple button operation, allow for single handed connection and disconnection. This ease of use and reduction in weight is meaning many end users are swapping out existing metal couplings for this design. Click here to view our range of blood pressure couplings

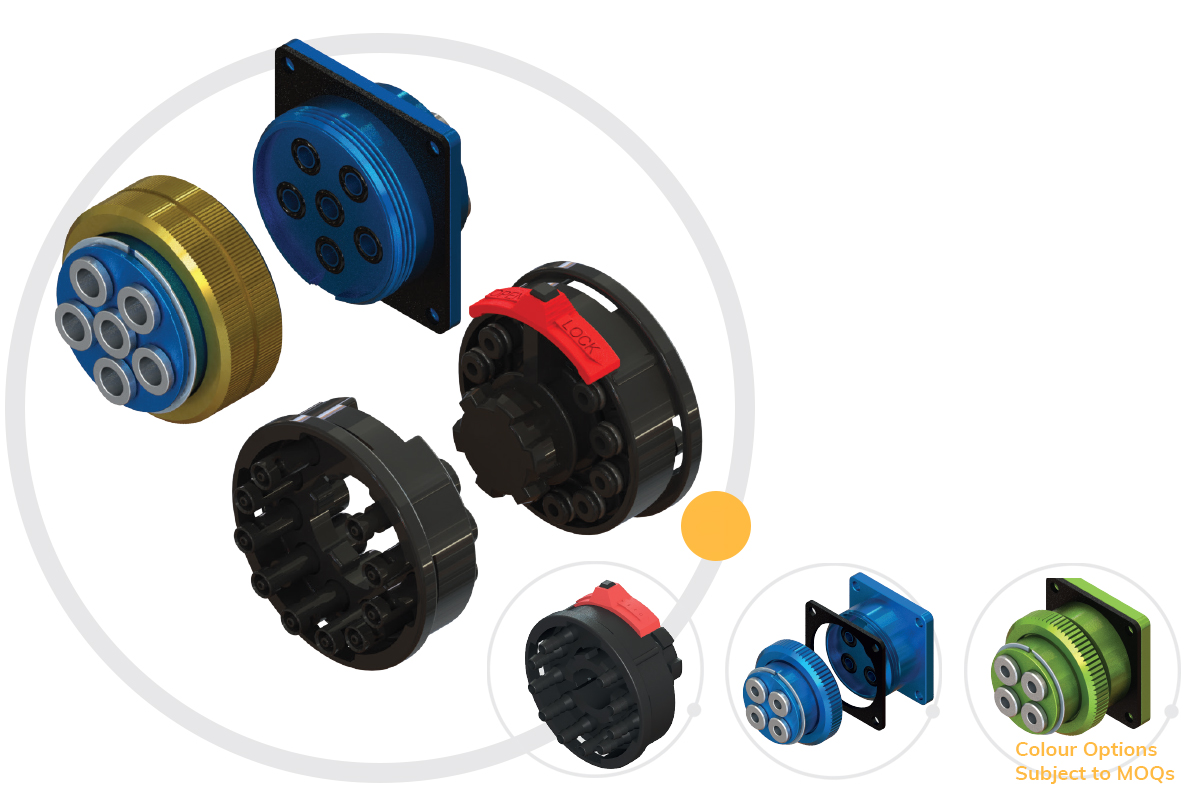

Multiple Bulkhead - Multi-line couplings reducing installation time

The multiple bulkhead coupling is ideal for connecting many media lines/bundle tubing, together at the same time. This allows for quick and easy swapping out of tooling/equipment, saving valuable downtime. Strong, but of lightweight plastic or anodised aluminium construction, they allow for easy handling, and a slide latch release allows for easy connection and disconnection of all lines simultaneously. Click here to view our range of multiple bulkhead couplings

Key features include:

• Multi line connection in single unit
• Fast efficient operation
• Reduce installation time
• Separate flow paths
• Valved/Non-Valved options available on socket side
• Keyed to prevent misalignment
• Resistant to most chemicals

Metal only:
• Different pressure in each channel - pressure and or vacuum in one coupling
• Different key options available
• Different colour options available on request

Screw Type - Maintain a connection with these couplings

Screw type couplings are designed to lock connectors together using a male and female thread. The couplings are coupled by simply screwing the socket and plug together until the stop is reached. Suitable for bespoke applications where the connection is required to be maintained and not disconnected often. Click here to view our range of screw type couplings

Key features include:

• One-handed disconnection
• Resistant to most chemicals, non-corrosive, suitable for industrial and medical
• Valved/Non-Valved options available
• High pressure working range
• Aesthetic plating options
