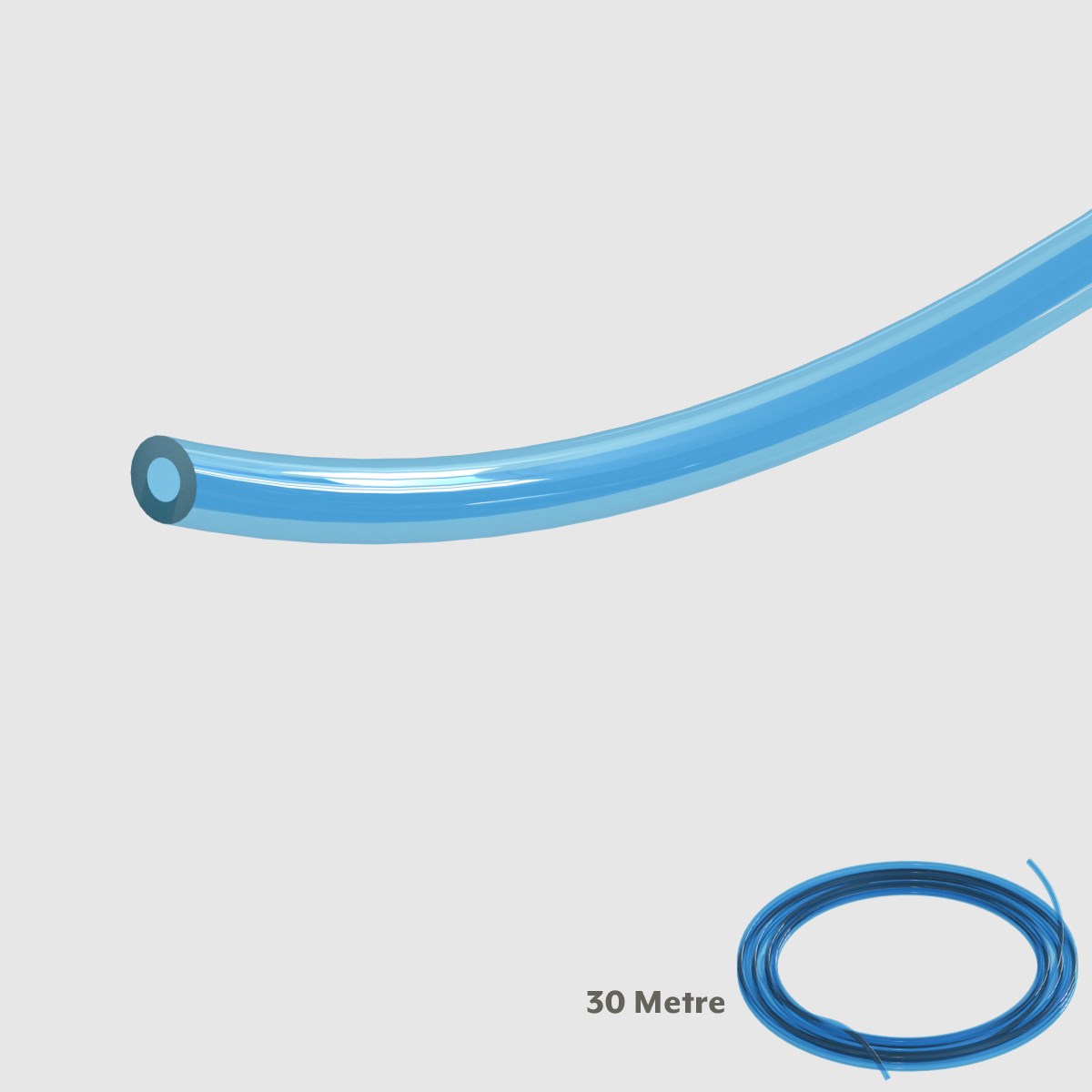

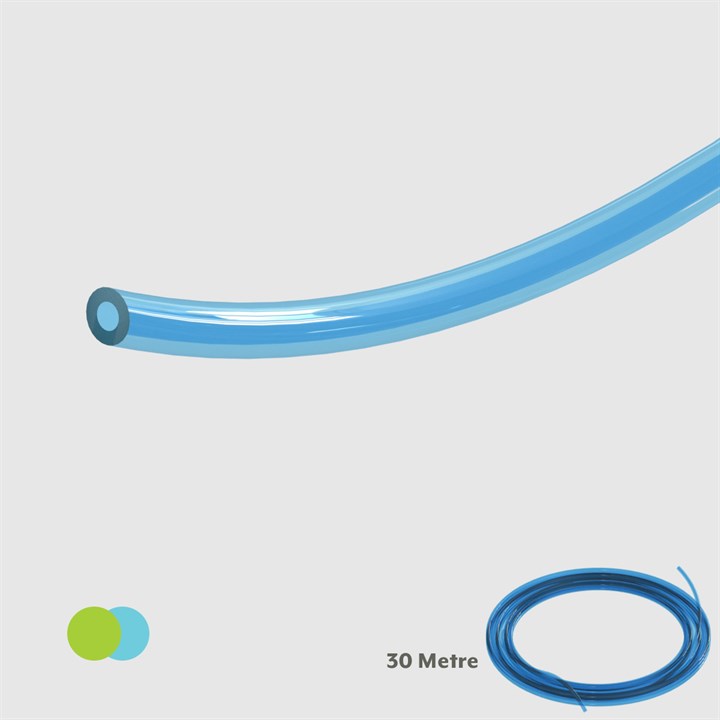

8 mm OD x 4.8 mm ID Polyurethane Tube, Transparent Blue Colour – 30M, 85 shore A
Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.
Bulk price quote request
Description 8 mm OD x 4.8 mm ID Polyurethane Tube, Transparent Blue Colour – 30M, 85 shore A
Extended Description 30 Metre coil (100 Feet) of Ether based UV Stabilized Transparent Blue Colour High-Flex 85A Polyurethane tube with an outside diameter of 8 mm (5/16"), an internal diameter of 4.8 mm (3/16") and a wall thickness of 1.57 mm (0.062") suitable for use with low pressure barb style fittings only.
Non-Wetted Materials Polyurethane
Wetted Materials Polyurethane
Cleanroom Manufactured Uncontrolled environment
Temperature Range -40°C – 74°C (-40°F – 165°F)
Working Pressure 3:1 Safety Factor
Operating Range at 25⁰C Vacuum to 7.58 bar (110 psi) at 25°C (75°F)
Diameter Tolerance ±0.127 mm (±0.005")
Operating Range at 65⁰C Vacuum to 3.10 bar (45 psi) at 65°C (150°F)
Item Weight 1.09Kg (1090 gram)
ROHS Compliant Yes
Regulatory Information USP Class VI. NSF61, Meets UL94HB Testing requirements
CE Mark No
REACH Compliant Yes
Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Animal derivative free, Latex free, Conflict minerals free. UV stabilized. For further information please contact us on +44 (0)2392 266031.
Durometer 85 Shore A
Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information
