Transparent Blue Polyurethane Tubing, 85 Shore A, 1/4" (6.4mm) ID x 3/8" (9.5mm) OD Tube - 30M - Compatible with Both Green and Blue Dot Fittings

Transparent Blue Polyurethane Tubing, 85 Shore A, 1/4" (6.4mm) ID x 3/8" (9.5mm) OD Tube - 30M - Compatible with Both Green and Blue Dot Fittings

E-T-160069

Transparent Blue Polyurethane Tubing, 85 Shore A, 1/4" (6.4mm) ID x 3/8" (9.5mm) OD Tube - 30M - Compatible with Both Green and Blue Dot Fittings

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Transparent Blue Polyurethane Tubing, 85 Shore A, 1/4" (6.4mm) ID x 3/8" (9.5mm) OD Tube - 30M
£202.10+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£202.10

10 - 19

£171.79

20 - 29

£151.58

30

£131.37

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-T-160069

Transparent Blue Polyurethane Tubing, 85 Shore A, 1/4" (6.4mm) ID x 3/8" (9.5mm) OD Tube - 30M - Compatible with Both Green and Blue Dot Fittings

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Transparent Blue Polyurethane Tubing, 85 Shore A, 1/4" (6.4mm) ID x 3/8" (9.5mm) OD Tube - 30M

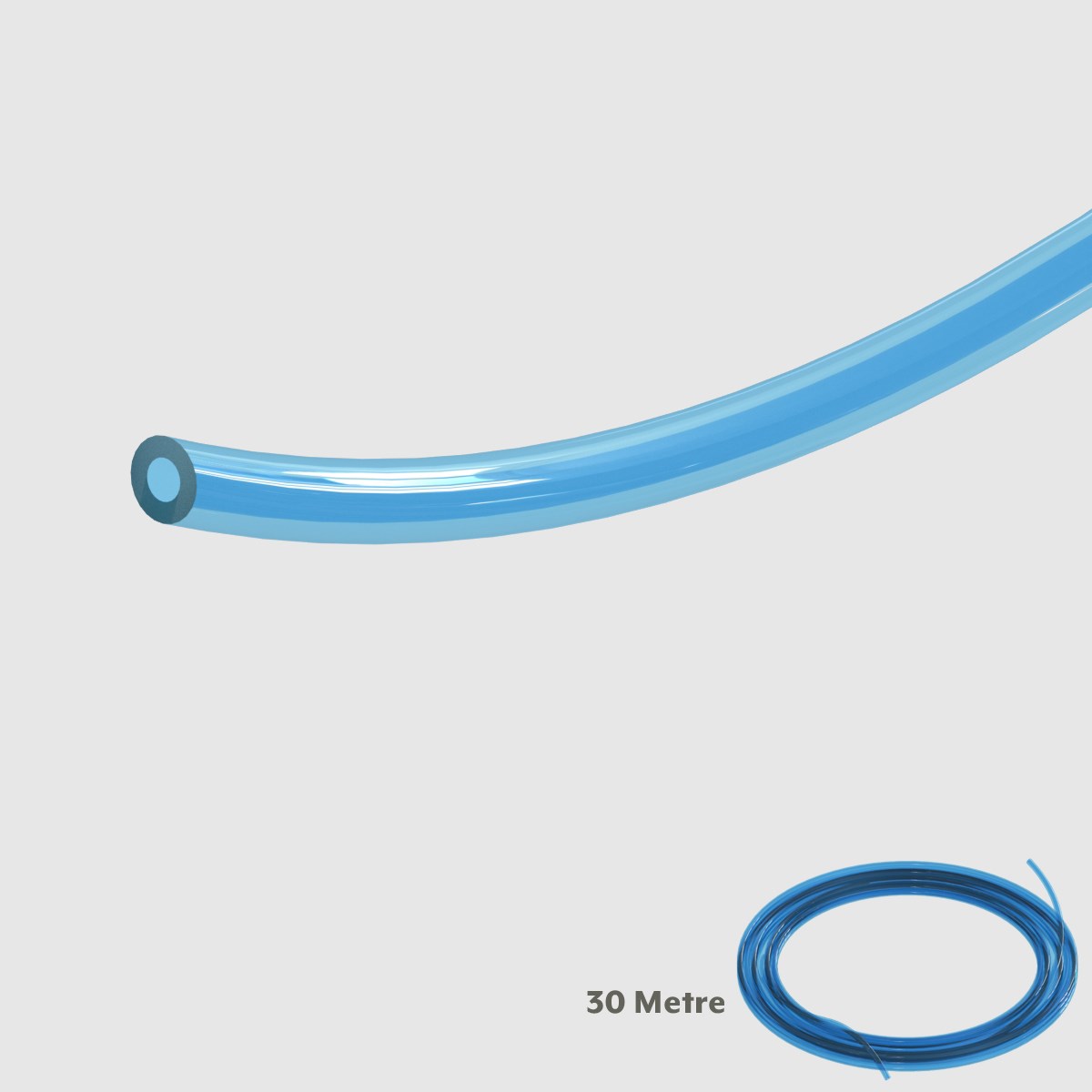

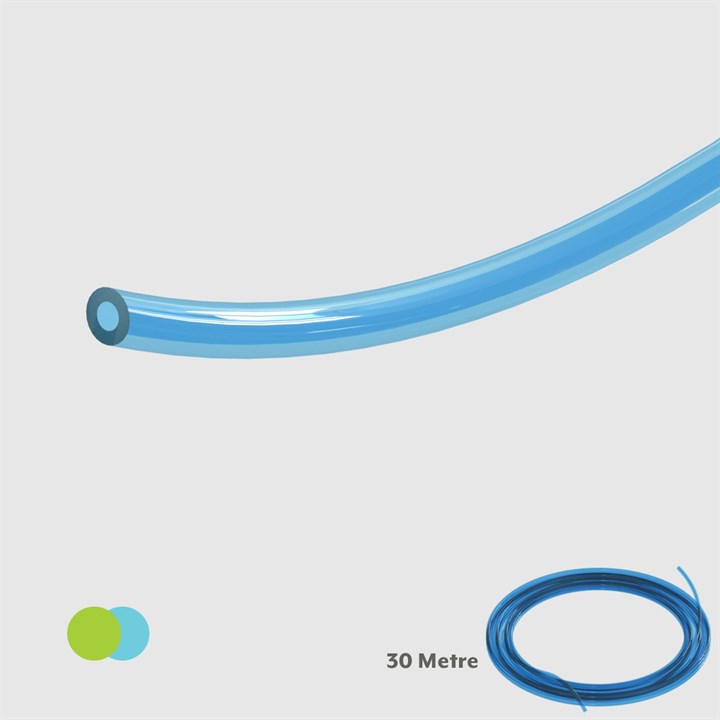

Extended Description 30 Metre coil (100 Feet) of Ether based UV stabilised transparent blue colour highly flexible 85A Polyurethane tubing with an internal diameter of 1/4" (6.4mm), an outside diameter of 3/8" (9.5mm) and a wall thickness of 1/16" (1.6mm) suitable for use with barb style fittings

Non-Wetted Materials Polyurethane

Wetted Materials Polyurethane

Cleanroom Manufactured Uncontrolled environment

Temperature Range -40°C to 74°C (-40°F to 165°F)

Working Pressure 3:1 Safety Factor. Vacuum to 6.21 bar (90 psi) at 25°C (75°F) / Vacuum to 2.41 bar (35 psi) at 65°C (150°F)

Operating Range at 25⁰C Vacuum to 6.21 bar (90 psi) at 25°C (75°F)

Diameter Tolerance ±0.005" (±0.127mm) ID/OD

Operating Range at 65⁰C Vacuum to 2.41 bar (35 psi) at 65°C (150°F)

Item Weight 1.36Kg (1360 gram)

ROHS Compliant Yes

Regulatory Information NSF 61, USP Class VI, Meets UL 94HB Testing requirements, California Prop.65 compliant

CE Mark No

REACH Compliant Yes

Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Animal derivative free, Latex free, Conflict minerals free. UV stabilised

Durometer 85 Shore A

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

Dimensional Drawing (pdf)

3D model (IGS)
