Acrylic Bodied Check Valve, White Silicone Duckbill, Plain Stem Ports for 1/8" ID Tube
Delivery date will be confirmed after order is placed.
Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.
Acrylic Bodied Check Valve, White Silicone Duckbill, 3.2mm (1/8") ID Tube, Cracking Pressure 3" H2O
1 - 9
10 - 24
25 - 49
50 - 99
100 - 249
250 - 499
Bulk price quote request
Description Acrylic Bodied Check Valve, White Silicone Duckbill, 3.2mm (1/8") ID Tube, Cracking Pressure 3" H2O

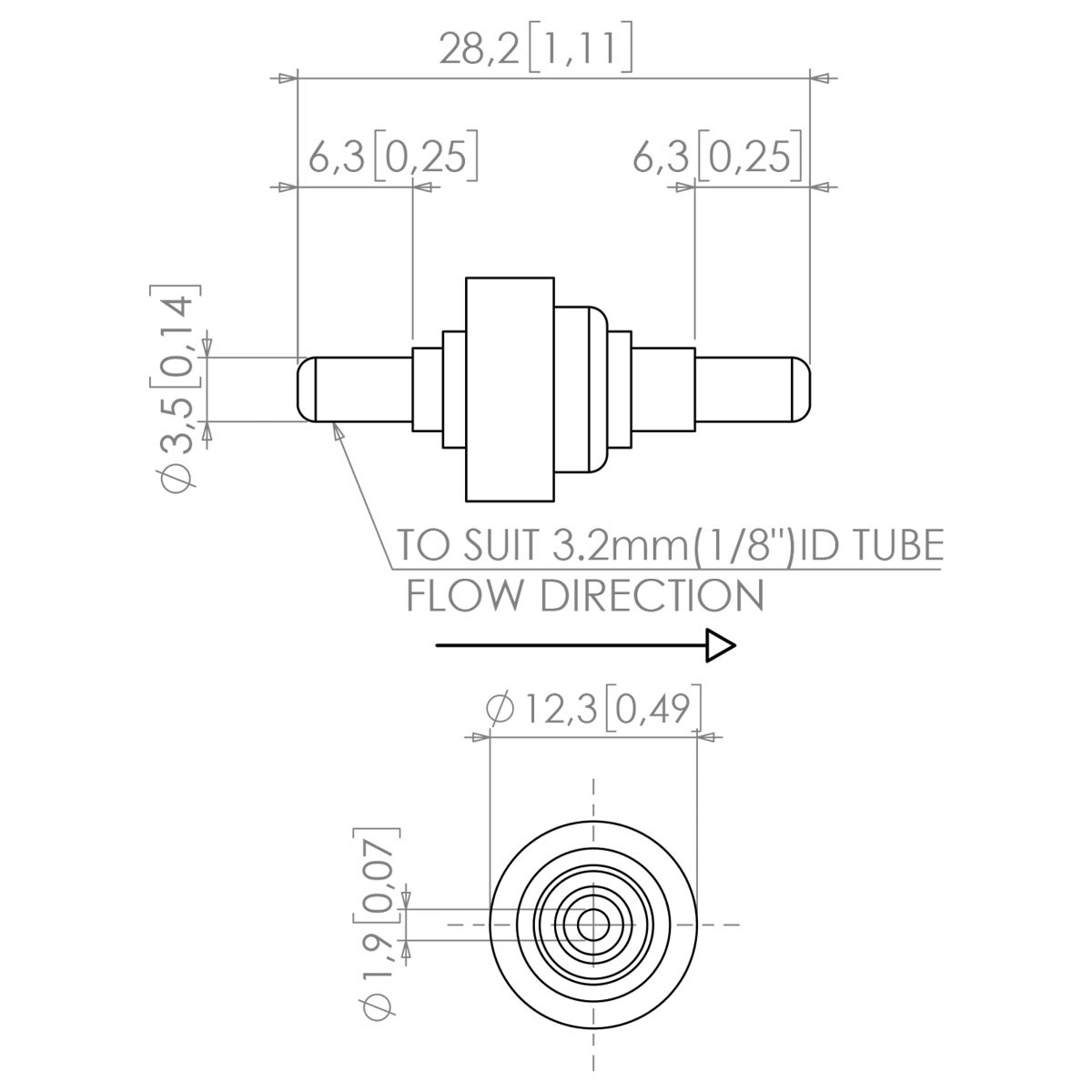

Extended Description An in-line, Clear, Acrylic bodied check valve complete with a White Silicone duckbill and plain stem ports to suit 1/8" ID tube. This valve has a cracking pressure of 3" H2O
Ambient Temperature 5°C – 60°C (40°F – 140°F)
Mounting Style In-line
Connection 1 To suit 3.2mm (1/8") ID Tube
Connection 2 To suit 3.2mm (1/8") ID Tube
Recommended Filtration 5 micron
Media Temperature 5°C – 60°C (40°F – 140°F)
Non-Wetted Materials Acrylic
Wetted Materials Acrylic, Silicone
Cleanroom Manufactured No
Max. Inlet Pressure Designed for Low Pressure or Gravity Feed Only – Recommend Sample Testing for Pressure Applications
Cracking Pressure 3" H2O (0.11 psi)
Item Weight 0.9g (0.32oz)
ROHS Compliant Yes
CE Mark No
REACH Compliant Yes
Other Technical Data Suitable for Gamma irradiation up to 5 megarads and is also compatible with EtO Sterilization. Housing is made from Plexiglas® DRG-100 Acrylic and is bondable to PVC and other compatible tubing. For further information please contact us on +44 (0)2392 266031
Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information
