0 to 35 PSI Output Pressure Unit for Pneuchange Trio
Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.
Bulk price quote request
Description 0 to 35 PSI Output Pressure Unit for Pneuchange Trio

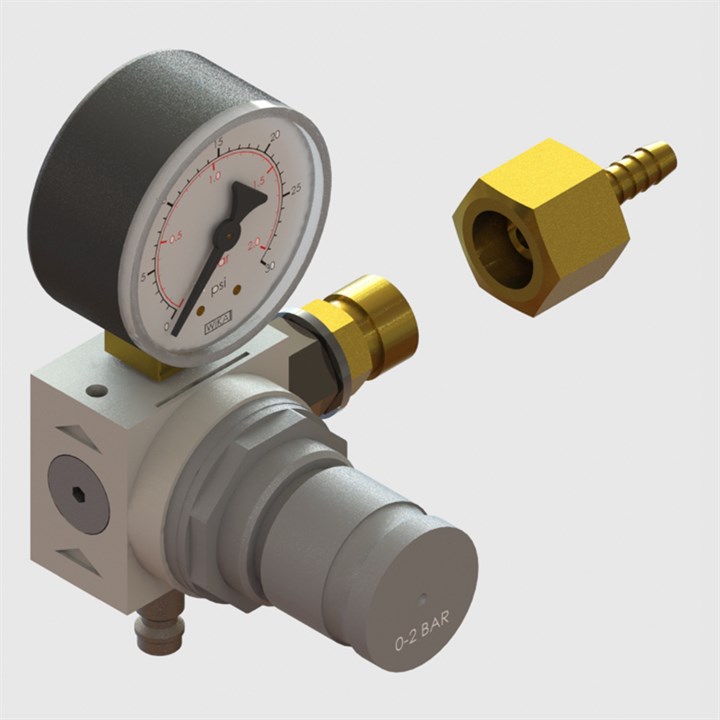

Extended Description Outlet pressure module for use with the Pneuchange Trio base unit, comprising of regulator, gauge and hosetail fitting. For use with CO2 and other inert gases
Ambient Temperature -10°C to 50°C (14°F to 122°F)
Mounting Style Direct to NTC PCTRIO, In-Line to Downstream System
Connection 1 Male Plug Quick Coupling to Pneuchange Trio
Connection 2 G3/8" Male Coned R/H c/w Hosetail to suit 6.4 mm (1/4") ID Tube
Recommended Filtration 20 micron
Media Temperature -10°C to 50°C (14°F to 122°F)
Non-Wetted Materials Stainless Steel, Chrome Plated Steel, Brass, Technopolymer
Wetted Materials Brass, Nickel Plated Brass, Steel, Technopolymer, Cu-Alloy, Nitrile Rubber
Clean Room Manufactured Controlled Environment
Max. Inlet Pressure 6.9 bar (100 psi)
Item Weight 0.3800 (13.40oz)
ROHS Compliant Yes
CE Mark Yes
REACH Compliant Yes
Other Technical Data The regulator is a relieving type and so it is recommended that suitable ventilation is provided when the unit is in use. When setting the outlet pressure, always adjust on increasing pressure. For further information please contact us on +44 (0)2392 266031
