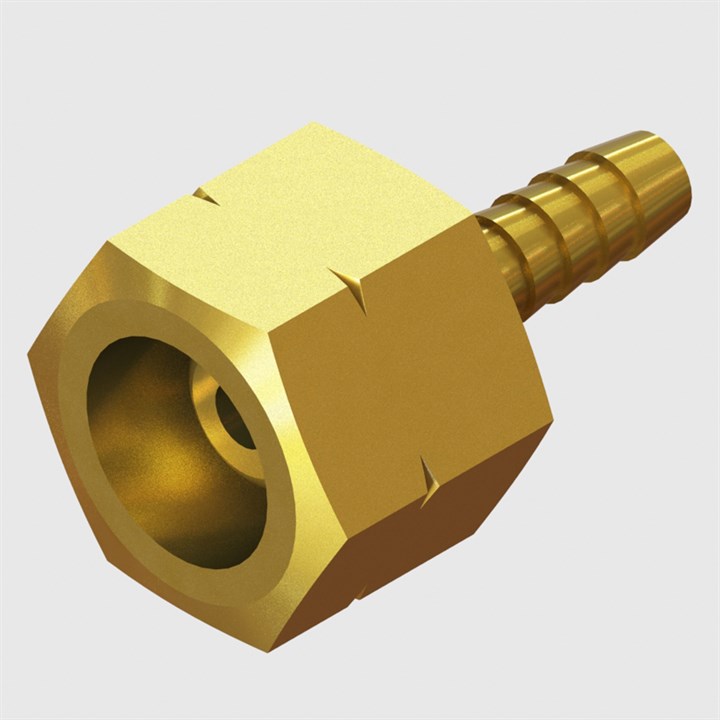

G3/8" Female Nut L/H x 1/4" Hosetail, Brass
Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.
Bulk price quote request

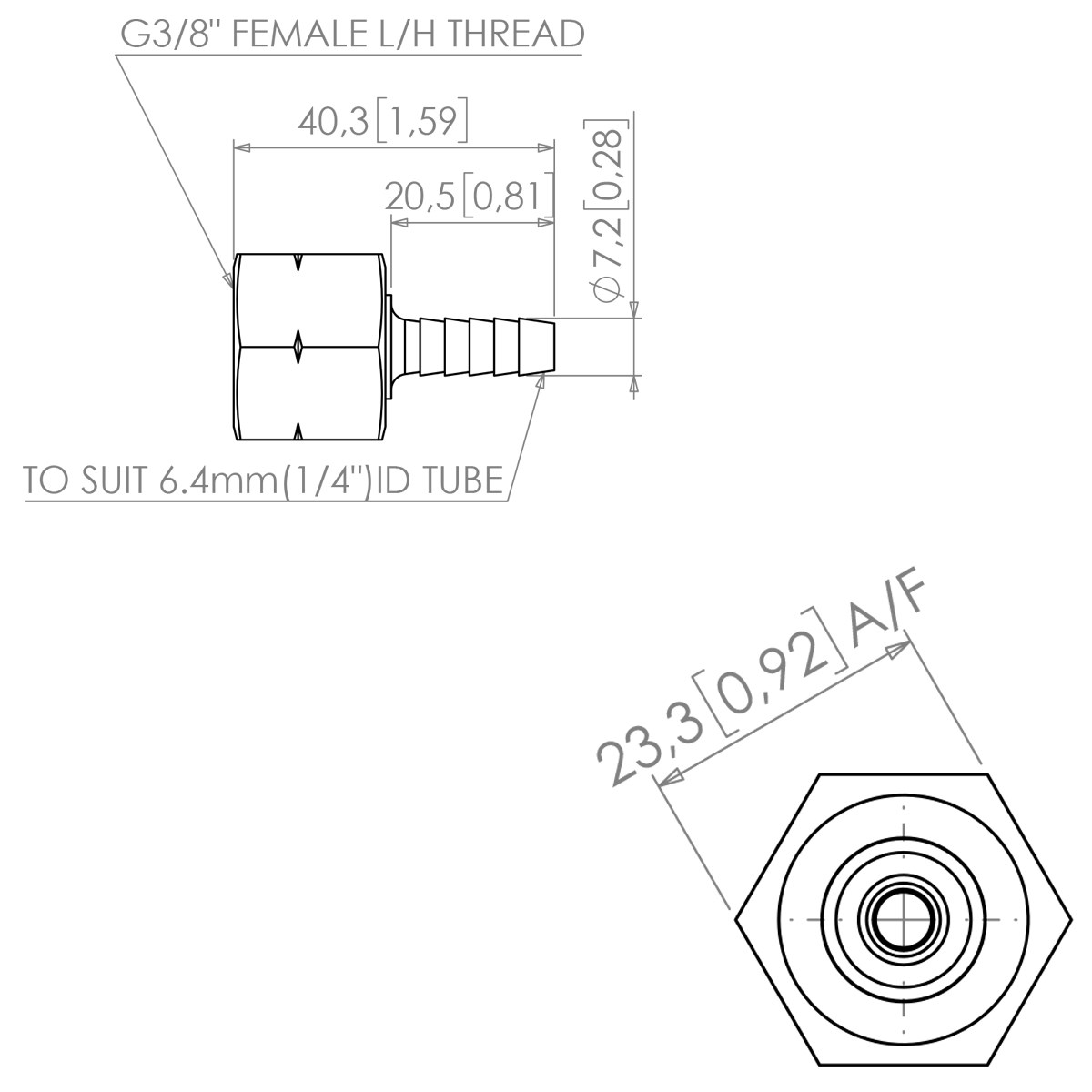

Description G3/8" Female Nut L/H x 1/4" Hosetail, Brass
Extended Description G3/8" left hand female nut and 1/4" hosetail, Brass
Ambient Temperature -20°C to 60°C (-4°F to 140°F)
Mounting Style In-Line
Connection 1 G3/8" Female nut L/H
Connection 2 To suit 6.4 mm (1/4") ID Tube
Recommended Filtration To suit application and media
Media Temperature -20°C to 60°C (-4°F to 140°F)
Non-Wetted Materials Brass
Wetted Materials Brass
Clean Room Manufactured Controlled Environment
Item Weight 0.0420 (1.49oz)
ROHS Compliant Yes
REACH Compliant Yes
Other Technical Data *Maximum working pressure also depends on tube properties. For further information please contact us on +44 (0)2392 266031
