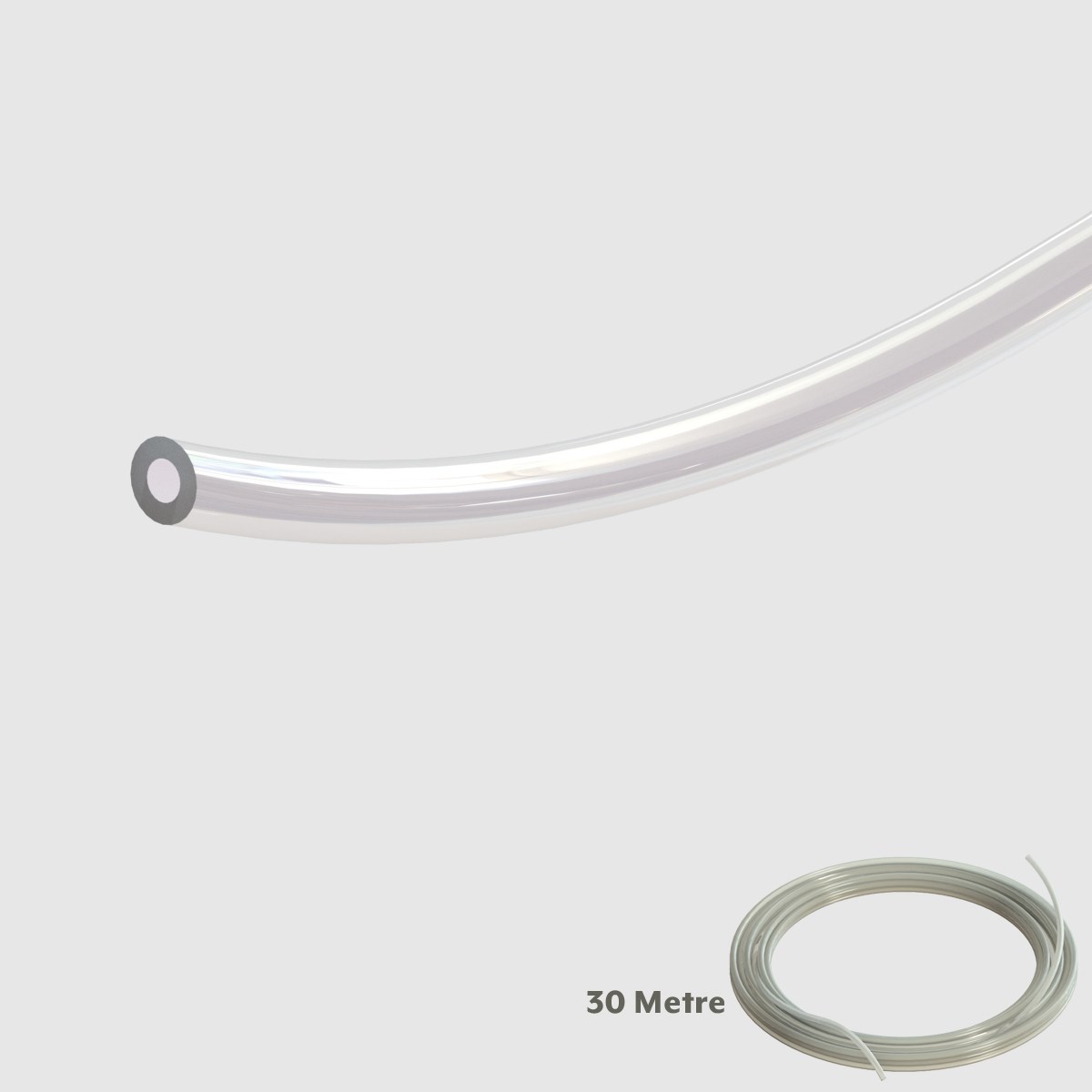

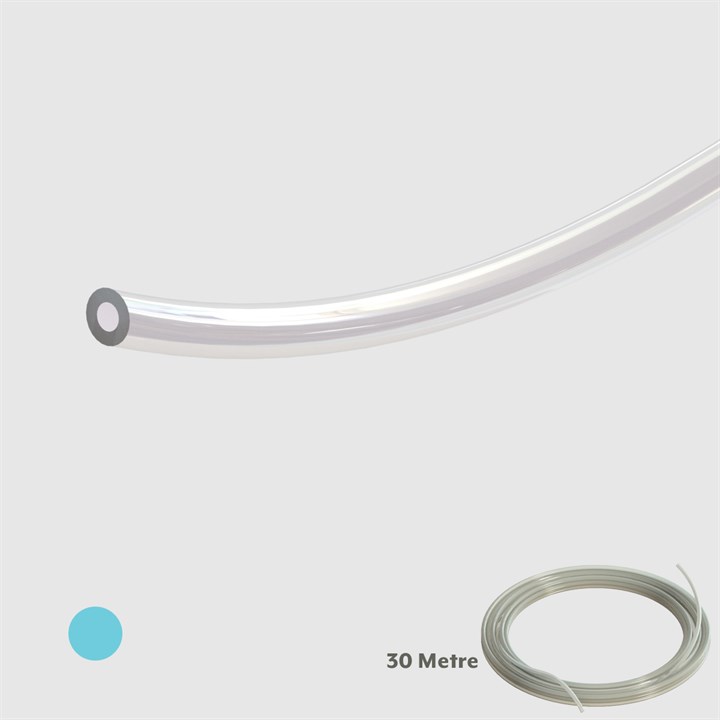

3/8" OD x 1/4" ID Un-reinforced Flexible PVC Tube, Clear Colour, 80 Shore A
Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.
Bulk price quote request
Description 3/8" OD x 1/4" ID Un-reinforced Flexible PVC Tube, Clear Colour, 80 Shore A
Extended Description 30M coil (100 Foot) of Un-reinforced flexible Clear Colour Polyvinyl Chloride (PVC) tube with an outside diameter of 3/8", an internal diameter of 1/4" and a wall thickness of 0.062" suitable for use with barb style fittings
Non-Wetted Materials Non-Phthalate Polyvinyl Chloride
Wetted Materials Non-Phthalate Polyvinyl Chloride
Cleanroom Manufactured Uncontrolled environment
Temperature Range -34.4°C – 65.55°C (-30°F – 150°F)
Working Pressure 3:1 Safety Factor
Operating Range at 25⁰C Vacuum to 6.24 bar (91 psi) at 25°C (75°F)
Diameter Tolerance ± 0.127 mm (± 0.005")
Operating Range at 65⁰C Vacuum to 1.03 bar (15 psi) at 65°C (150°F)
Item Weight 1.47Kg (3.25lb)
ROHS Compliant Yes
Regulatory Information USP Class VI. FDA 21 CFR 177.1593
CE Mark No
REACH Compliant Yes
Other Technical Data Resin compliance is as follows; Phthalate free, DEHP free, Latex free, Conflict minerals free. Animal Derivative free. For further information please contact us on +44 (0)2392 266031.
Durometer 80 Shore A
Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information
