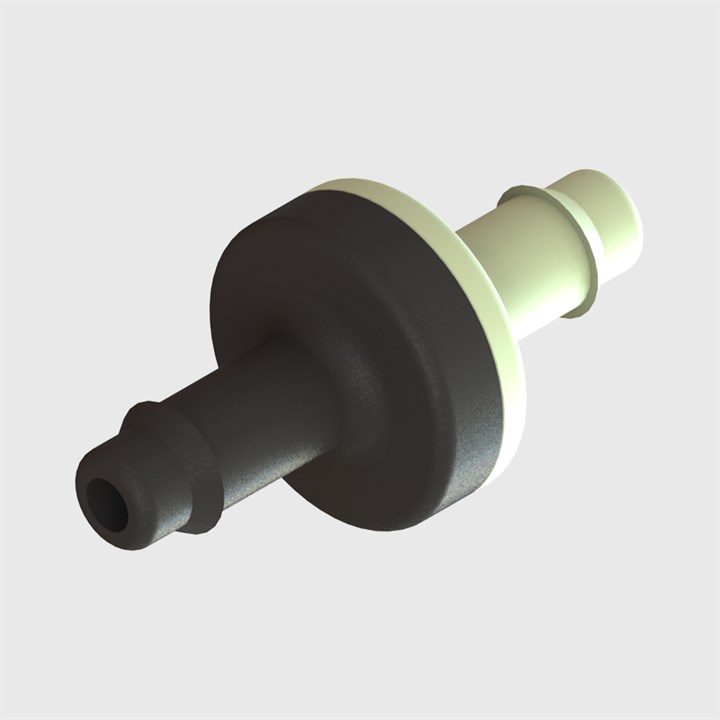

Nylon Bodied Check Valve, EPDM Diaphragm, 6.4mm (1/4") ID Tube, Cracking Pressure 0.5 psi

E-C-180038

Nylon Bodied Check Valve, EPDM Diaphragm, 6.4mm (1/4") ID Tube, Cracking Pressure 0.5 psi

Delivery date will be confirmed after order is placed.

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

Nylon Bodied Check Valve, EPDM Diaphragm, 6.4mm (1/4") ID Tube, Cracking Pressure 0.5 psi
£5.89+ VAT
Quantity
Price

1 - 9

£5.89

10 - 24

£5.60

25 - 49

£5.30

50 - 99

£5.01

100 - 249

£4.71

250 - 499

£4.42

500

£4.12

Looking to purchase a large quantity? Click here

Description Nylon Bodied Check Valve, EPDM Diaphragm, 6.4mm (1/4") ID Tube, Cracking Pressure 0.5 psi

Extended Description In-line, Nylon bodied check valve complete with EPDM diaphragm and barbed ports to suit 1/4" ID tubing. This valve has a cracking pressure of 0.5 psi and will operate in any orientation. Can be used with Vacuum or pressure and is also suitable for some vapour, gas and fluid systems

Ambient Temperature -29°C – 121°C (-20°F – 250°F)

Mounting Style In-line

Connection 1 To suit 6.4mm (1/4") ID Tube

Connection 2 To suit 6.4mm (1/4") ID Tube

Recommended Filtration To Suit Application and Media

Media Temperature -29°C – 121°C (-20°F – 250°F)

Non-Wetted Materials Nylon 6/6

Wetted Materials Nylon 6/6, EPDM

Cleanroom Manufactured No

Max. Inlet Pressure 1.03 bar (15 psi)

Flow Rate Approx. 7.08 L/Min (15 CFH) Forward Flow at 5 psi

Cracking Pressure 0.034 bar (0.5 psi)

Item Weight 0.0030Kg (3g)

ROHS Compliant Yes

CE Mark No

REACH Compliant Yes

Other Technical Data A check valve is generally used in a pneumatic circuit which requires free flow in one direction (Normally indicated with an arrow on the check valve) and no flow in the opposite direction, they can also be useful as a bypass valve allowing flow around other circuitry components such as needle valves which would restrict the flow in both directions. For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information
