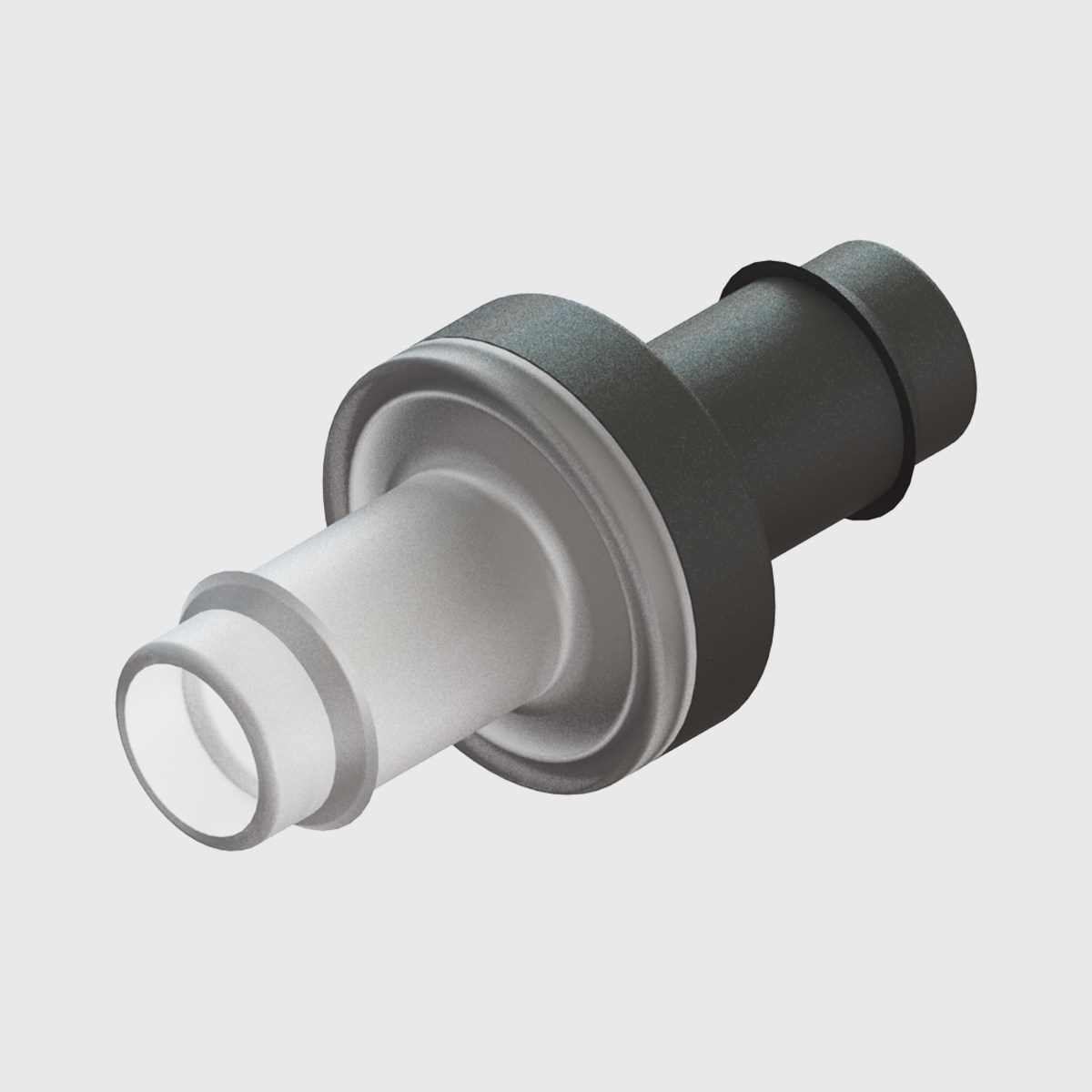

Nylon Check Valve, Fluorosilicone Seal, 3/8" (9.5mm) ID Tube, Cracking Pressure <0.1 psi

Nylon Check Valve, Fluorosilicone Seal, 3/8" (9.5mm) ID Tube, Cracking Pressure <0.1 psi

E-C-180161

Nylon Check Valve, Fluorosilicone Seal, 3/8" (9.5mm) ID Tube, Cracking Pressure <0.1 psi

In Stock
Nylon Check Valve, Fluorosilicone Seal, 3/8" (9.5mm) ID Tube, Cracking Pressure <0.1 psi
£2.29+ VAT
Add To Wishlist
Quantity
Price

1 - 9

£2.29

10 - 24

£2.18

25 - 49

£2.06

50 - 99

£1.95

100 - 249

£1.83

250 - 499

£1.72

500

£1.60

Looking to purchase a large quantity? Click here
X

Bulk price quote request

Product Details

E-C-180161

Nylon Check Valve, Fluorosilicone Seal, 3/8" (9.5mm) ID Tube, Cracking Pressure <0.1 psi

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description Nylon Check Valve, Fluorosilicone Seal, 3/8" (9.5mm) ID Tube, Cracking Pressure <0.1 psi

Extended Description Nylon bodied and Fluorosilicone diaphragm check valve with barbs to suit 3/8" (9.5mm) ID tube. Cracking pressure of less than 0.1 psi

Ambient Temperature 82 °C (180°F)

Mounting Style In-Line

Connection 1 To suit 3/8" (9.5mm) ID Tube

Connection 2 To suit 3/8" (9.5mm) ID Tube

Media Temperature 82 °C (180°F)

Non-Wetted Materials Nylon

Wetted Materials Nylon, Fluorosilicone

Max. Inlet Pressure 3.50 Bar (50 psi)

Cracking Pressure <0.1 psi

Item Weight 0.0036Kg (3.6g)

ROHS Compliant Yes

REACH Compliant Yes

Other Technical Data For further information please contact us on +44 (0)2392 266031

Disclaimer: All information has been carefully collated and presented, however, Eoxshop cannot accept responsibility for incorrect or misprinted information

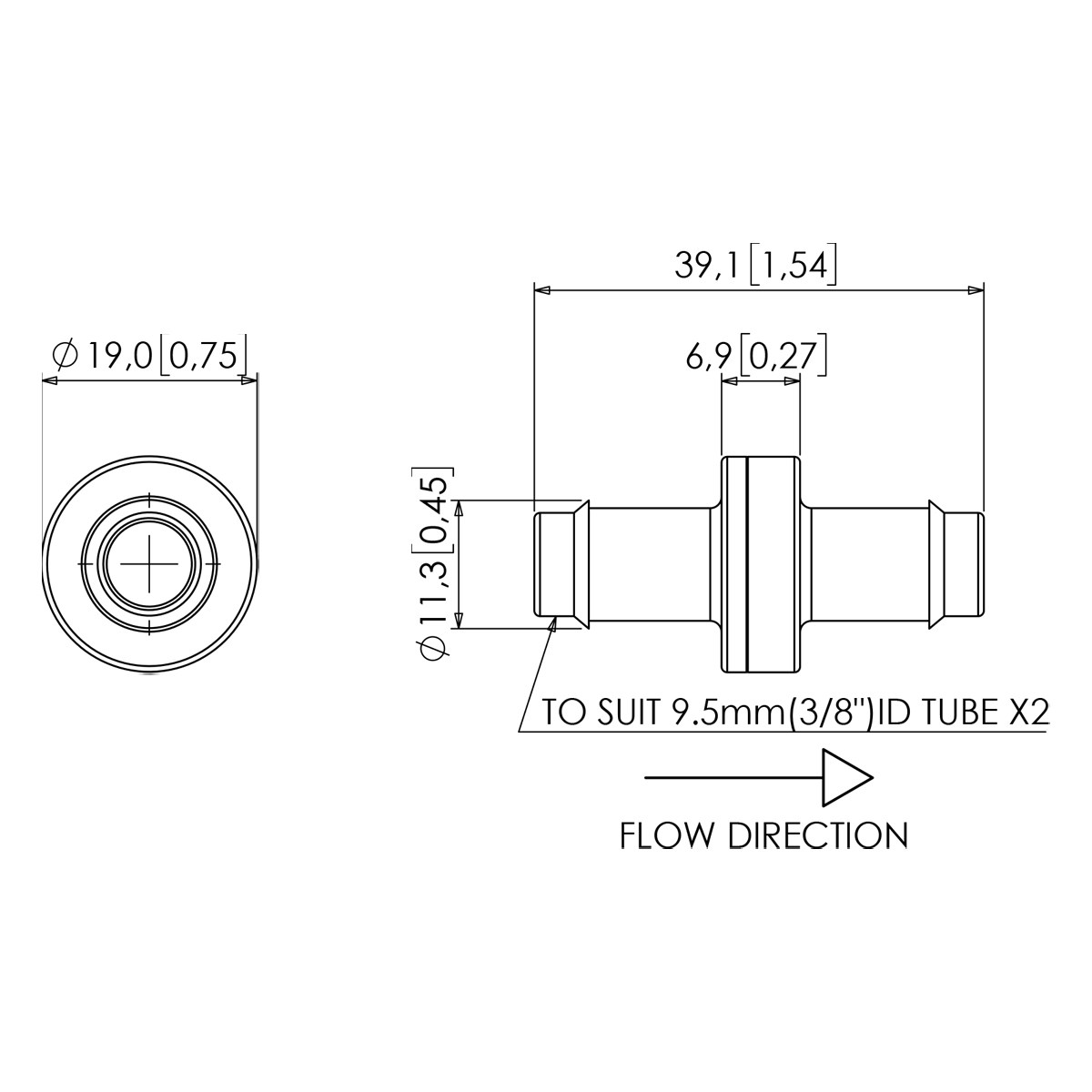

Dimensional Drawing (pdf)

3D model (IGS)

Glossary of terms
